MARINE X 60.2 PLUS Edition

Sale price$2,722.79

Introducing the Waterbox PLUS™ Edition aquarium systems - your hassle-free solution for setting up a new aquarium. Our meticulously designed complete packages take the guesswork out of the equation, providing you with expertly paired lighting, filtration, pumps, and supplies.

  • Prime 16HD Reef
  • Prime Flex Arm 12"
  • Protein Skimmer 140
  • SYNCRA Silent 3.0
  • Mesh Lid System
  • Nero 5
  • Osmo 3 Auto Top Off
  • SCUBA ContactLess Submersible Heater 200 Watts

View Aquarium Specifications

In-Stock. Ships in 3-5 business days.

The Display

A Flawless Viewing Experience


Rimless aquariums provide a modern look with an unobstructed viewing experience.

Ultra-Clear Glass

Offers 91% light transmittance and complete visual clarity up to 19mm (3/4”).

High Strength Black Silicone

Creates clean lines and provides your aquarium with the longevity it needs.

Central Overflow

Dual returns and a removable weir comb allow for easy maintenance and just the right amount of flow.

The Plumbing

A Safe & Silent Operation

Safety Drain

Prevents overflowing of the aquarium.

Main Drain

Directs water to the sump filtration system.

Return Line

Equipped with dual adjustable nozzles for precise water flow.

The Plumbing

Easy To Assemble

Downflow Drain System

Provides the ability to push higher flow rates through the drain.

Quick Connect Fittings

Assembly is quick and easy with no gluing required.

Precision Overflow Valve

Allows for precise adjustments through main drain ensuring quiet operation.

The Sump

Designed for simplicity and functionality

Filter Sock or Roller Filtration

Dual 4-inch filter socks which can easily adopt the most popular filter rollers.

Skimmer & Media Reactor Chamber

Ample space for the industry's leading skimmers and reactors.

RO Reservoir

Integrated reservoir for ease of maintenance using an electronic top-off system.

Return Pump Chamber

Adequate space for most common aquarium return pumps.

The Cabinetry

Strength and Durability

Unveiling our new marine-grade cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.

Aluminum Framed

Constructed with 20 mm aluminum framing to easily withstand the weight and humidity of your aquarium system.

Laminated Finish

Laminated wood panels skirt the aluminum framing for a sleek, modern look.

Adjustable Leveling Feet

An easy and effective way to ensure your aquarium is level, front to back and side-to-side.


The open back design allows for optimal ventilation and easy cord routing.

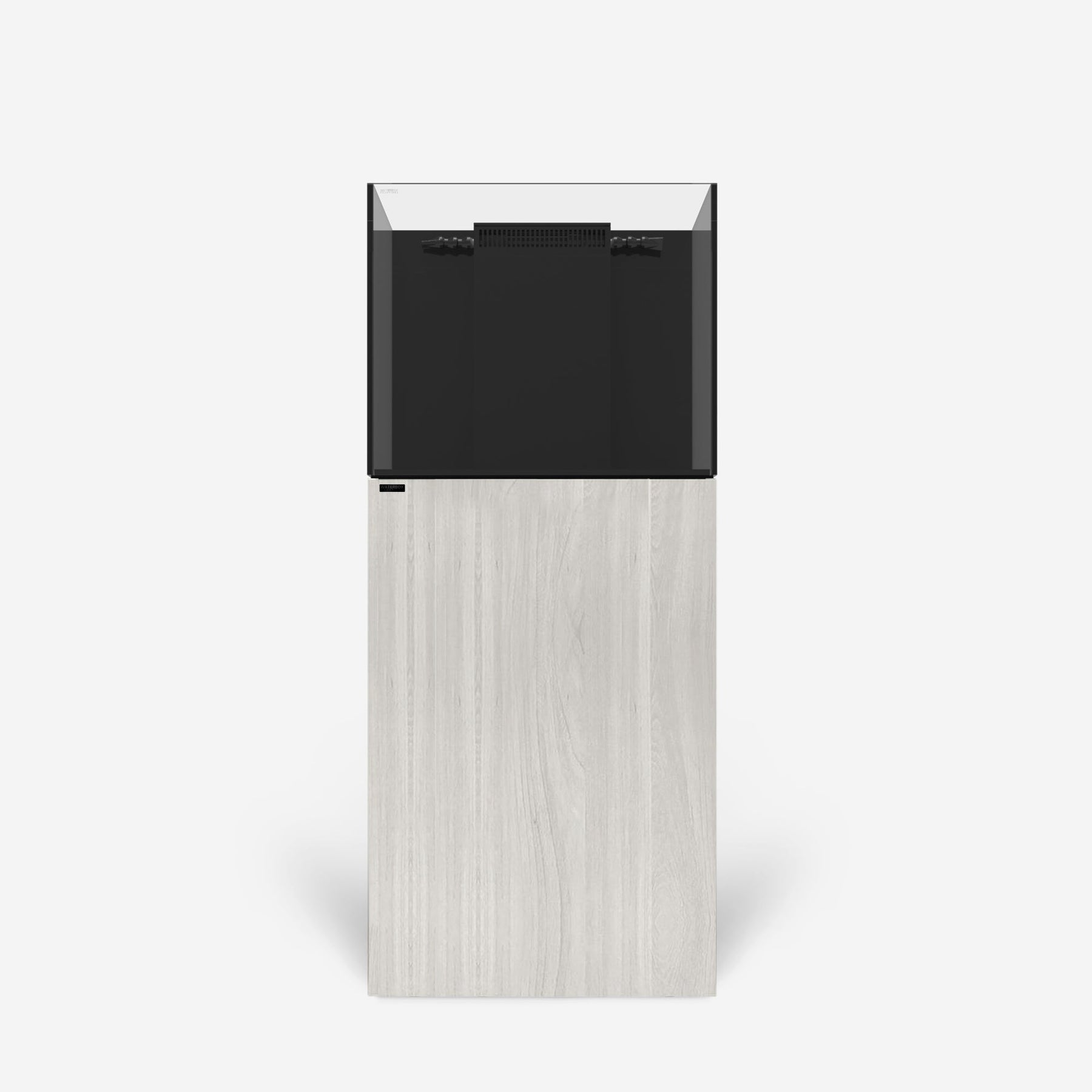

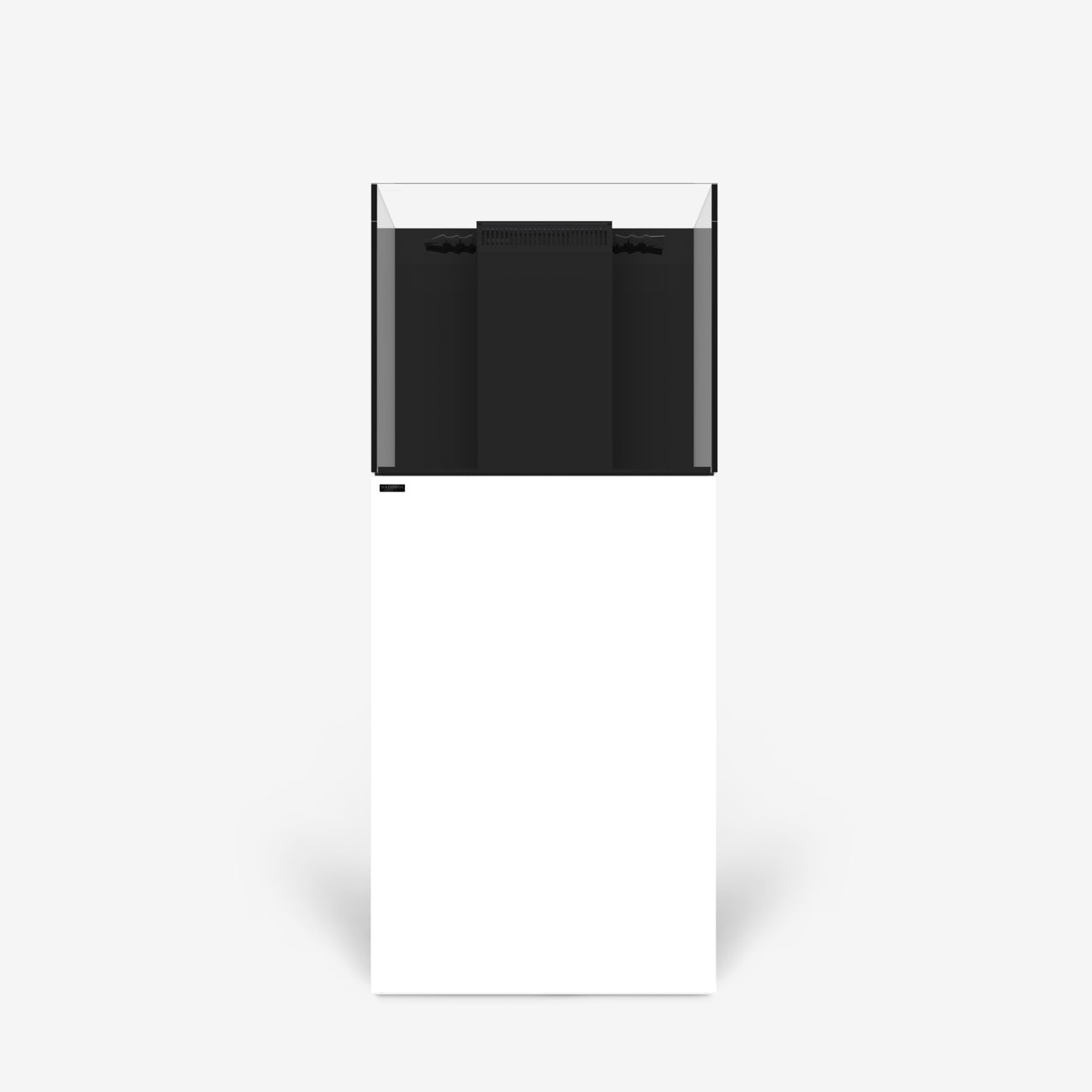

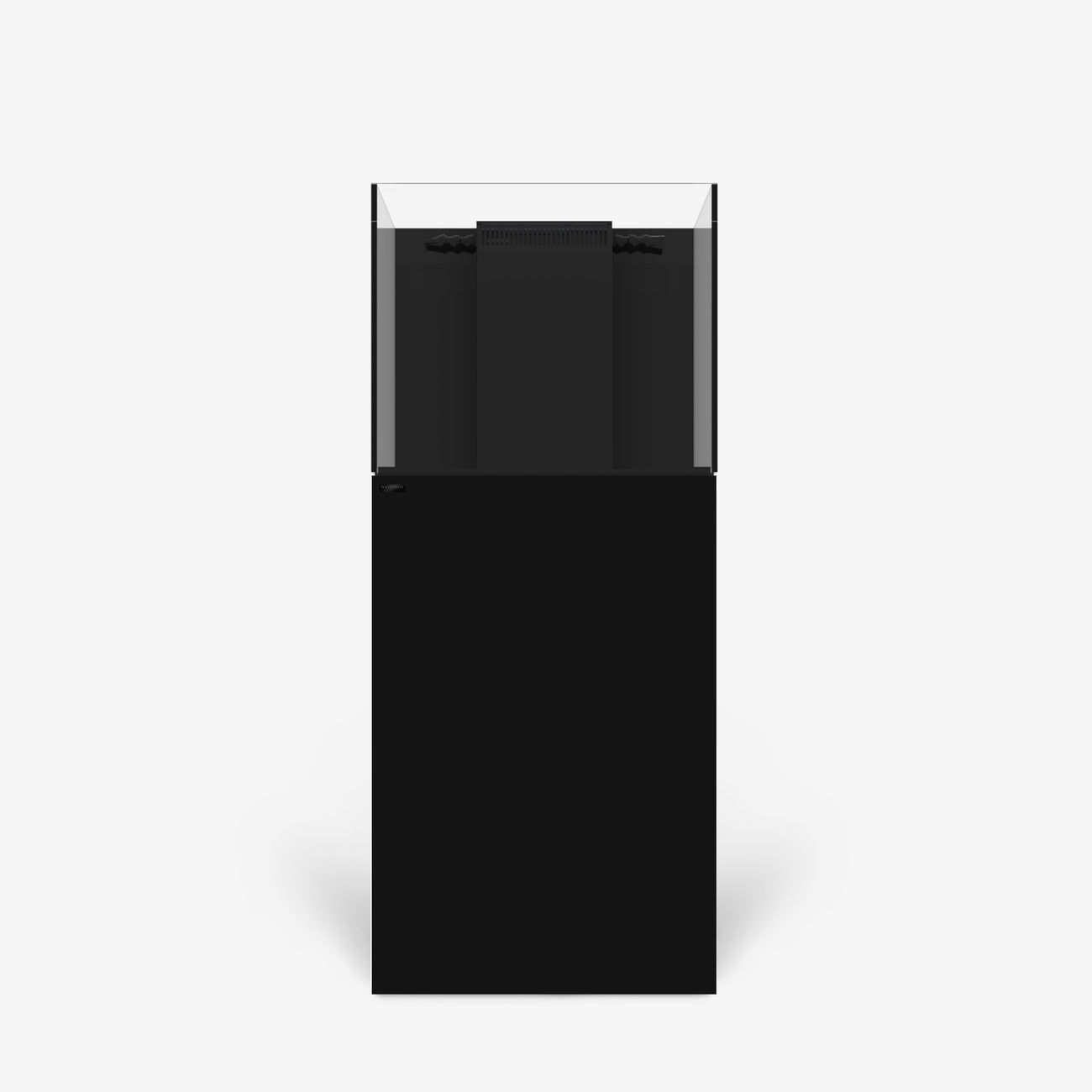

Available in Three Color Options


Reef Now. Pay Later.

Waterbox now offers two convenient ways to pay for your aquarium purchase over time.

Technical Specifications

Product Model MARINE X 60.2 MARINE X 90.3 MARINE X 110.4
System Height with Cabinet 1,400mm/55.6" 1,450mm/57.1" 1,450mm/57.1"
Total Volume with RO 211 L/55.6 gals 342 L/90.2 gals 418 L/110.5 gals
Tank Dimensions 600 x 500 x 500mm 900 x 500 x 550mm 1,200 x 500 x 550mm
23.6" × 19.7" × 19.7" 35.4" × 19.7" × 21.7" 47.2" × 19.7" × 21.7"
Glass Thickness 10mm (2/5") 12mm (1/2") 12mm (1/2")
Aquarium Volume 136 L/36 gals 224 L/59.3 gals 301 L/79.6 gals
Glass Material Ultra-clear Low Iron glass (front and sides)
Transmittance 91%
Dimensions 510 x 410 x 380mm 800 x 410 x 380mm
20.1" × 16.1" × 15" 31.5" × 16.1 × 15"
Sump Volume 74 L/19.6 gals 117 L/31 gals
Glass Thickness 6mm (1/4") 6mm (1/4")
Skimmer Chamber
(Int. Dimensions)
308 x 258mm 388 x 343mm
12.1" × 10.2" 15.3" × 13.5"
Pump Chamber
(Int. Dimensions)
140 x 210mm 210 x 150mm
5.5" × 8.3" 8.3" × 5.9"
RO Reservoir
(Int. Dimensions)
140 x 183 x 359mm 210 x 243 x 359mm
5.5" × 7.2" × 14.1" 8.3" × 9.6" × 14.1"
RO Volume 9.2 L/2.4 gals 18.3 L/4.8 gals
Plumbing Main Drain DN20 (25mm/1") DN25 (32mm/1-1/4")
Emergency Overflow DN20 (25mm/1") DN25 (32mm/1-1/4")
Pump Return DN20 (25mm/1") DN20 (25mm/1")
Nozzle(s) 2 x DN15 (20mm/3/4")
Pre-assembled Piping with Emergency Overflow
High Precision Flow Valve
Dual Return Directional Nozzles 2 x DN15 (20mm/3/4")
Filtration 225 Micron Filter Socks 1 x 105mm/4" MESH 2 x 105mm/4" MESH
Filter Sock Silencers 1 x 105mm/4" 2 x 105mm/4"
Noise-reducing Overflow Lid x 1 x 2
Cabinet Cabinet Model ALU 2420 ALU 3620 ALU 4820
Cabinet Dimensions 600 x 500 x 900mm 900 x 500 x 900mm 1,200 x 500 x 900mm
23.6" × 19.7" × 35.4" 35.4" × 19.7" × 35.4" 47.2" × 19.7" × 35.4"
Sump Compartment
(Int. Dimensions)
524 x 468 x 813mm 824 x 448 x 813mm 1,124 x 440 x 813mm
20.6" × 18.4" × 32" 32.4" × 17.6" × 32" 44.3" × 16.5" × 32"
Cabinet Framework Anti-corrosion Aluminum Alloy
Door & Side Panels 18mm PVC Laminated Wood Particle Board
Bottom Panels 10mm PVC Board
Back Panels 6mm PVC Board
Cabinet Color WHT-White, BLK-Black, ASP-Aspen
SUS304 Hinges
Leveling Feet
Manifold Kit (Optional) Manifold 15
(Single outlet)
Manifold 15 (Single outlet)
Manifold 15D (Double outlet)
Mesh Aquarium Lid (Optional) MT MX 60.2 MT MX 90.3 MT MX 110.4

* All volumes are calculated from net tank dimension less the glass thickness. They may vary dependent on user configuration and system application.
** All specifications are subject to changes without prior notice.
