Waterbox Aquariums

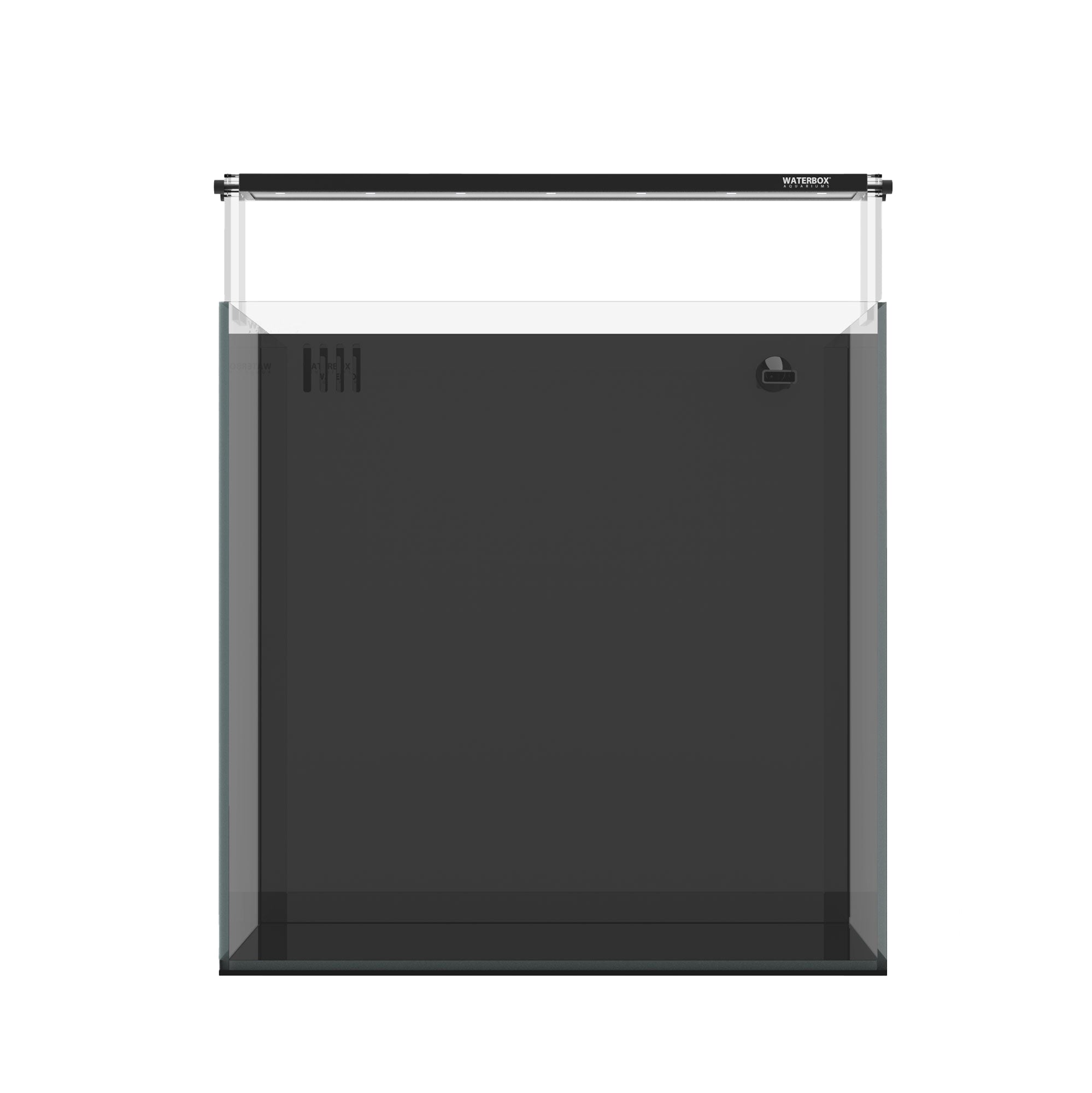

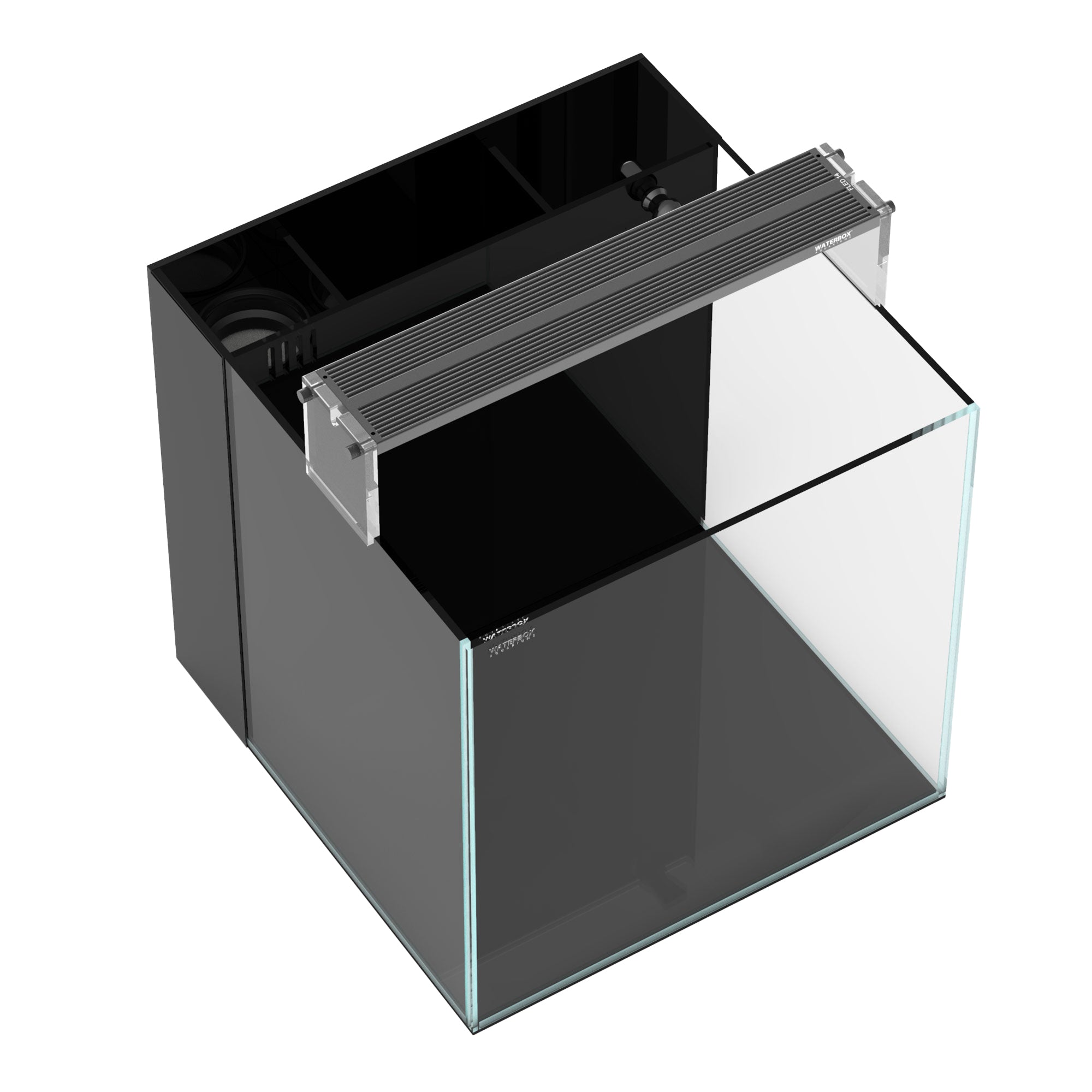

AIO 10 CUBE FLED
• Display Volume: 41 L/10.9 gals
• Glass Thickness: 5mm
• Includes: Aquarium, Lighting (w/o controller), Filter Sock, Carbon Pellets, Ceramic Rings, Pump
View Full Specifications
Remarkably Simple
The Waterbox AIO 10 CUBE and AIO 15 PENINSULA are your introduction to aquarium keeping and the perfect place to build your own unique ecosystem.

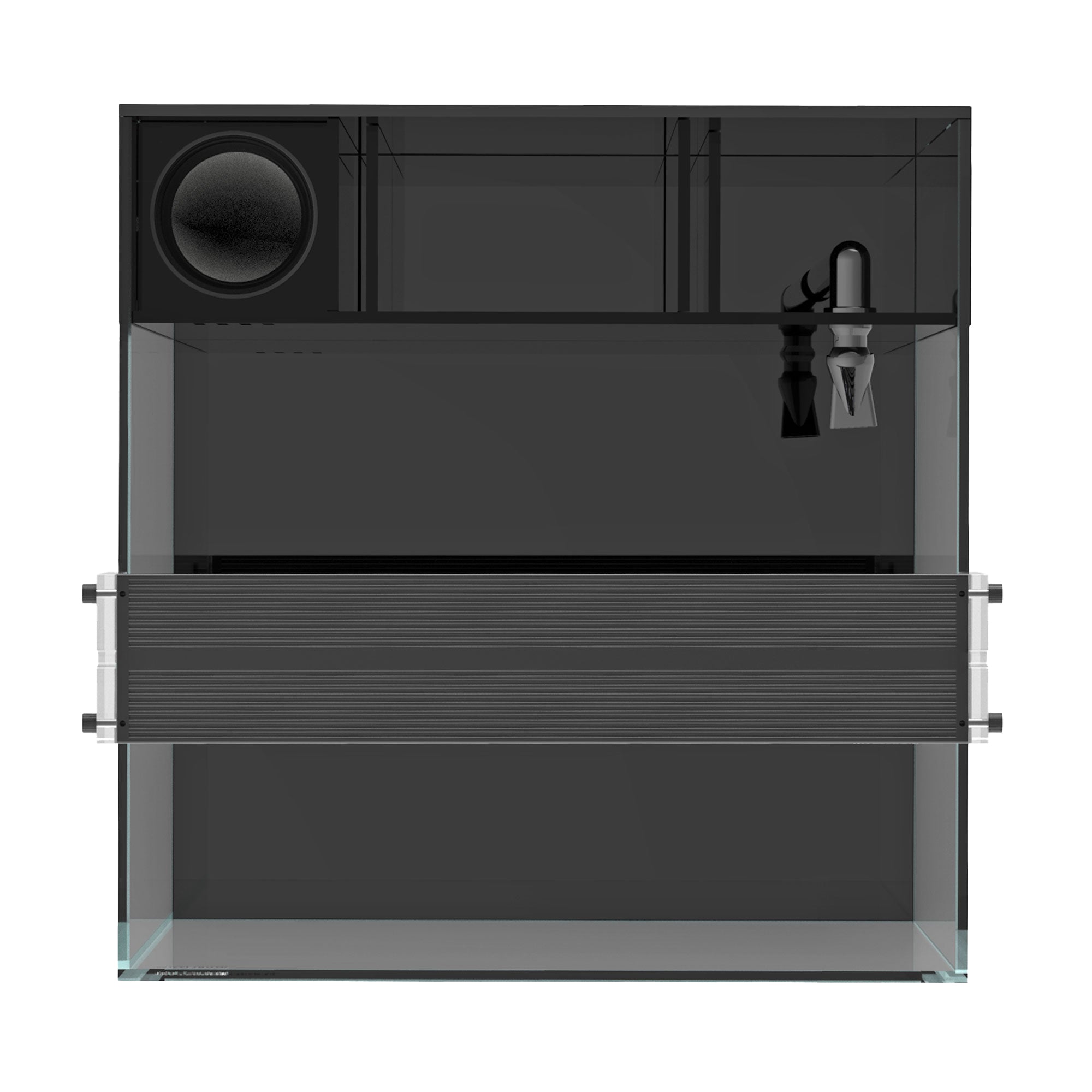

All In One Rear Filtration
A simplified filtration system keeps your filtration media in the rear of the aquarium, maintaining a sleek and effective filtration method.
Water begins filtration process.
Water passes through the included filter sock to remove debris and particulates from the water helping to maintain water quality
Water flows through filtration media.
Carbon removes discoloration, organics and toxins from the water. Ceramic rings provide surface area for beneficial bacteria to grow. Sponges break up any bubbles in the system and will trap any larger debris.
Water returns to aquarium display.
The aquarium water has been through mechanical, biological and chemical filtration and is now returned back to the aquarium.
Next Level Lighting
Full spectrum lighting with individual channel control to take complete control of your aquarium's ambiance by adjusting each color channel independently.
Financing
Build Now. Pay Later.
Waterbox now offers two convenient ways to pay for your aquarium purchase over time.
Technical Specifications
| Product Model | AIO 10 CUBE | AIO 15 Peninsula | |
|---|---|---|---|
| Aquarium | Dimensions (Length x Width x Height) |
350 x 350 x 350mm | 500 x 350 x 350mm |
| 13.8" × 13.8" × 13.8" | 19.7" × 13.8" × 13.8" | ||
| Aquarium Volume | 40 L | 57 L | |
| 10.5 gals | 15.2 gals | ||
| Glass Thickness | 5mm (3/16") | ||
| Water Height | 335mm/13.2" | 335mm/13.2" | |
| Aquairum Weight | 10 kg/22 lbs | 13.5 kg/30 lbs | |
| Glass Material | Ultra-clear glass | ||
| Transmittance | 91% | ||
| Filtration Compartment (Int. Dimensions) |
340 x 80 x 338mm | ||
| 13.4" × 3.1" × 13.3" | |||
| Filter Sock Chamber (Int. Dimensions) |
80 x 80 x 338mm | ||
| 3.1" × 3.1" × 13.3" | |||
| Media/Skimmer Chamber (Int. Dimensions) |
125 x 80 x 338mm | ||
| 4.9" × 3.1" × 13.3" | |||
| Pump Chamber (Int. Dimensions) |
80 x 95 x 338mm | ||
| 3.1" × 3.7" × 13.3" | |||
| Pump | AP-600 | ||
| Pump Flow | 300 LPH/80 GPH | ||
| Directional Nozzle | 8mm (5/16"), Flare | ||
| Return Hose | Φ9 | ||
| EVA Mat | x 1 | ||
| LED Lighting | LED Lighting for Freshwater | FLED 14 | FLED 17 |
| Light Extension | EX-68 | EX-68 | |
| Length | 342mm (13.5") | 416mm (16.4") | |
| Width | 68mm (2.7") | 68mm (2.7") | |
| Height | 10mm (2/5") | 10mm (2/5") | |
| LED - White | 7 | 14 | |
| LED - RGB | 14 | 14 | |
| Wattage | Max.20W | Max.32W | |
| Luminous flux (lm) | 1300 | 2080 | |
| Power Adapter | 24V, 1A (US) | 24V, 1.75A (US) | |
| Universal Input Range | 100 to 420 VAC / 50-60Hz | ||
| Total Cable Length | 4300mm (169.3") | ||
| Material | Anodized Aluminum Alloy | ||
| Filtration | 225 Micron Filter Socks | 1 x 70mm/2.75" FELT | |
| Filtration Sponge | x 2 | ||
| Activated Carbon | 150g | ||
| Ceramic Ring | 300g | ||
