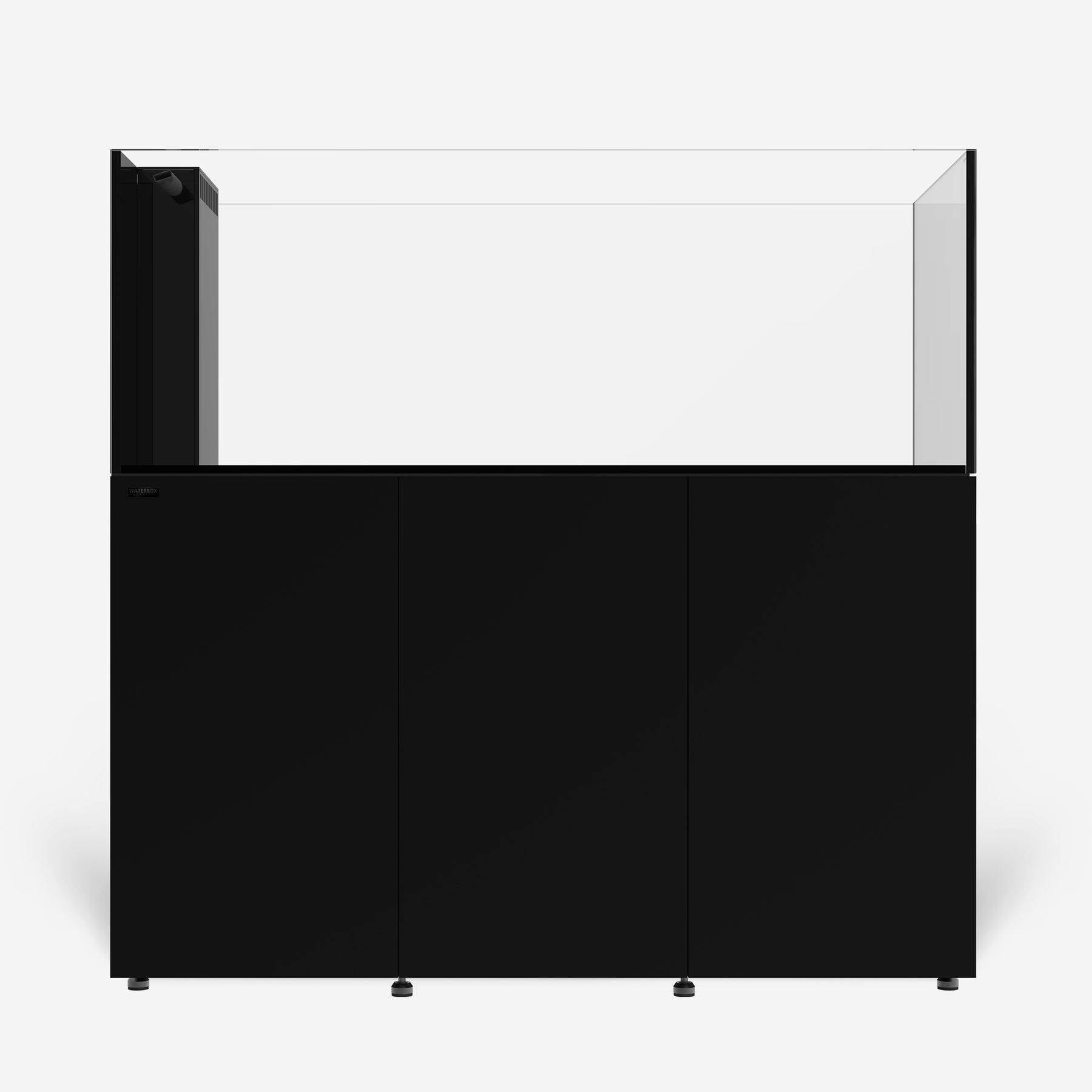

PENINSULA 6025

Sale price$3,999.00

SKU: D5010

• Dimensions (LxWxH): 1,536 x 643 x 575mm (60.5" × 25.3" × 22.6")
• Height with Cabinet: 1,502mm/59.1"
• Display Volume: 517 L/136.6 gals
• Total Volume: 738 L/195.1 gals
• Glass Thickness: 15mm (3/5″)
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications

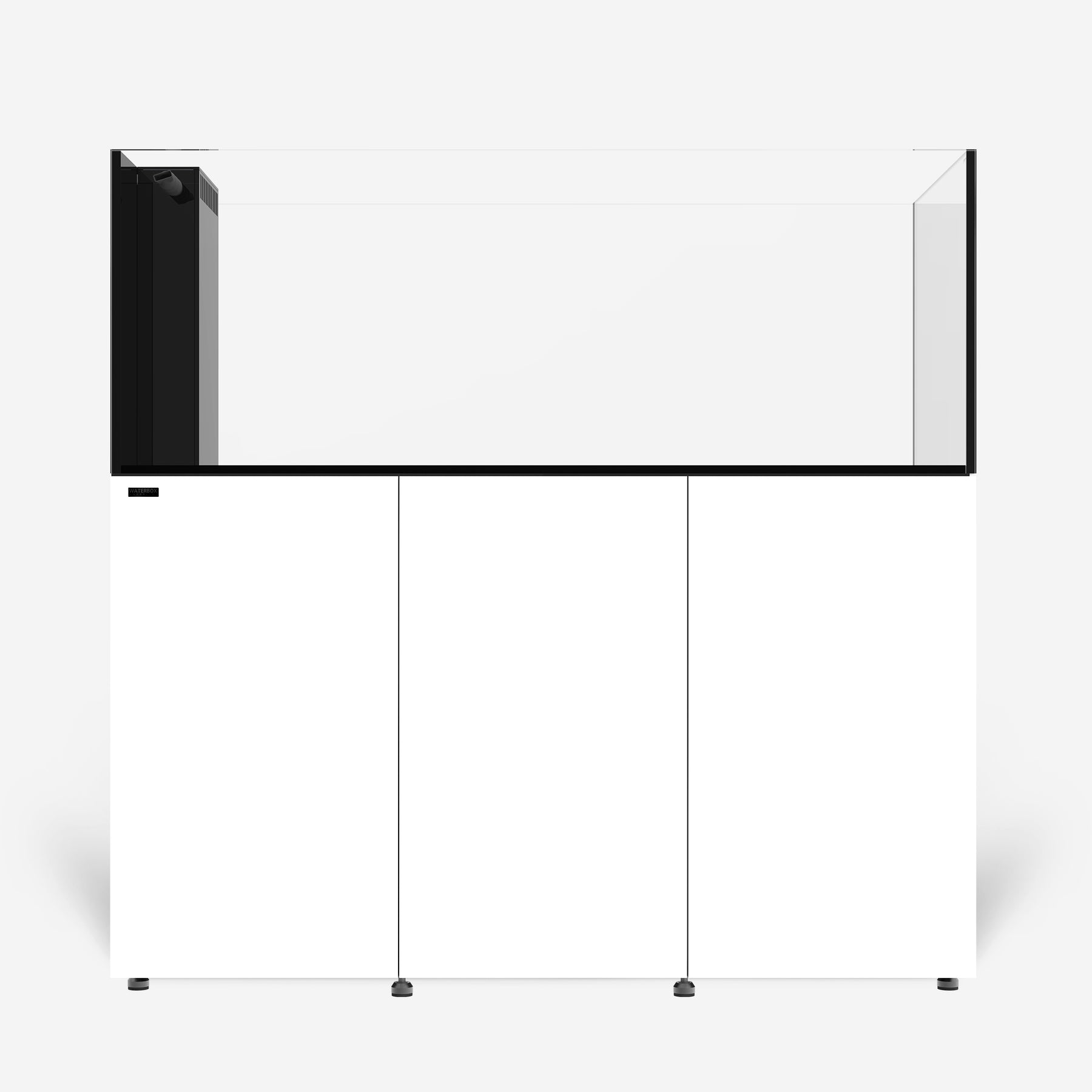

Color:White
Backordered. Ships by April 30th, 2024.

The Display

Elevate Your Living Space

Introducing the Peninsula® aquarium system - the ultimate room divider that seamlessly integrates nature into your home. Crafted with ultra-clear glass, you'll enjoy an unmatched view of your mesmerizing aquatic world from every perspective.

Renowned for superior quality.
Ultra-Clear diamond beveled glass offers visual clarity up to 19mm (3/4”).
High-strength black silicone provides clean lines and longevity.
Side Overflow with water etched glass weir comb allows for optimal flow.

The Plumbing

Silent and Easy to Assemble

Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.

Quick Connect Fittings assemble quick and easy with no gluing required.
Easy Assembly with no gluing required
Return Line includes dual adjustable nozzles for maximum turnover.
Precision Overflow Valve allows for precise adjustments ensuring quiet operation.
Manifold provides access for additional reactors and equipment.
Whisper Quiet Operation
Check Valve ensures back syphon does not overflow the sump.

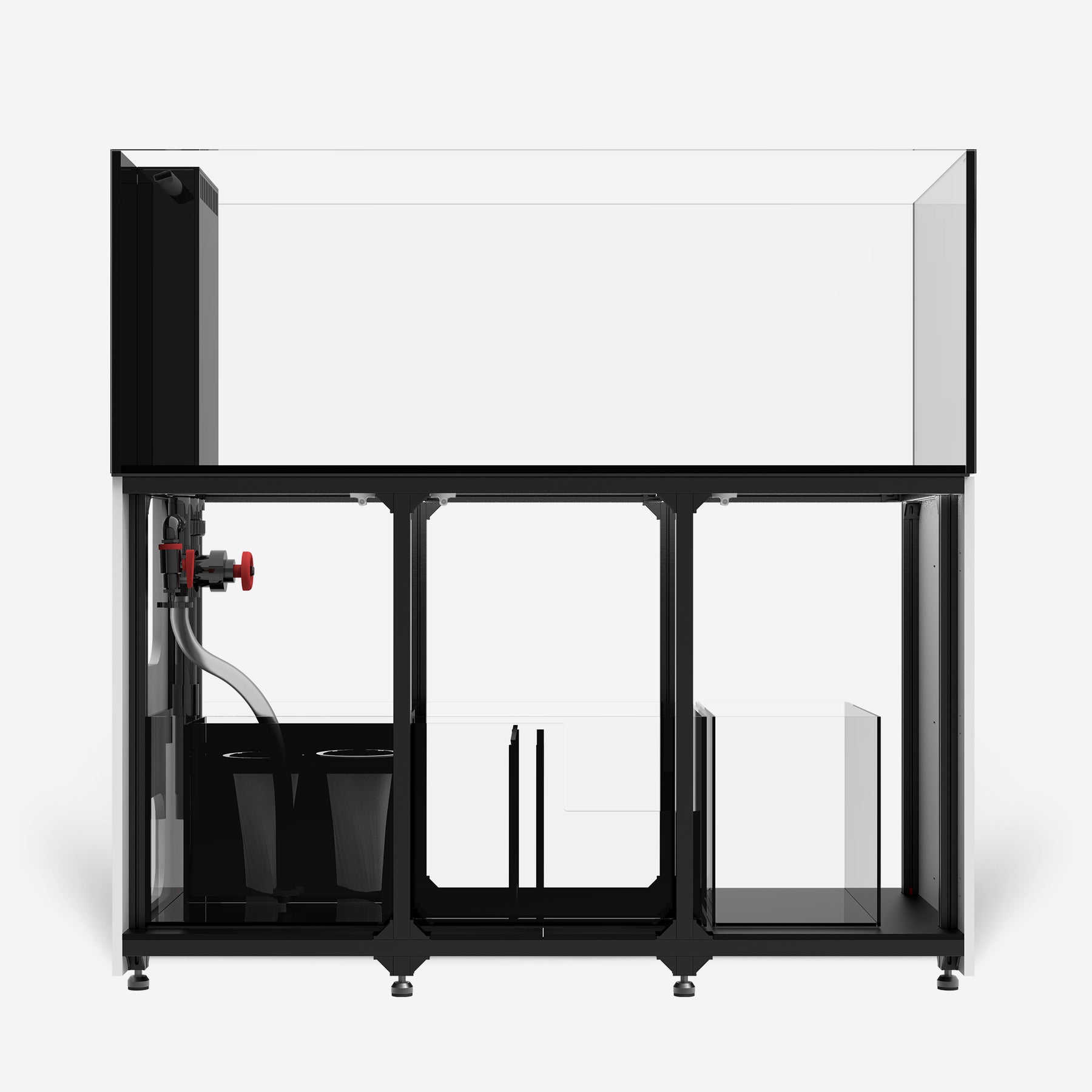

The Sump

Did you say filter roller?

The PENINSULA sump system features an integrated filter sock chamber which can easily adopt the most popular filter rollers.

Filter Sock Filtration featuring dual 7-inch filter socks to maximize filtration capacity.
Skimmer or Media Reactor Chamber with ample space for the industry's leading skimmers and reactors.
Easily adopt the most popular filter rollers.
Refugium maximizes your nutrient export.
Included RO Reservoir for ease of maintenance using an electronic top-off system.

Sump Diagrams

I have an answer

The Cabinetry

Accessibility and Durability

Unveiling our new marine-grade cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.

Constructed with 30mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
Stylish and classic look cabinetry system available in black, white, or aspen.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.
A Better Room Divider

Financing

Reef Now. Pay Later

Waterbox now offers two convenient ways to pay for your aquarium purchase over time.

Technical Specifications

Product Model PENINSULA 4820 PENINSULA 6025 PENINSULA 7225
System Height with Cabinet 1,450mm/57.1" 1,502mm/59.1" 1,527mm/60.1"
Total Volume with ATO 443 L/117.1 gals 738 L/195.1 gals 875 L/231.2 gals
Display
Tank
Tank Dimensions 1,200 x 500 x 550mm 1,536 x 643 x 575mm 1,836 x 643 x 600mm
47.2" x 19.6" x 21.7" 60.5" × 25.3" × 22.6" 72.3" × 25.3" × 23.6"
Glass Thickness 12mm (1/2") 15mm (3/5″) 19mm (3/4")
Aquarium Volume 301 L/79.6 gals 517 L/136.6 gals 632 L/167 gals
Glass Material Ultra-clear Low Iron glass (front and sides)
Transmittance 91%
In-cabinet
Sump
Dimensions 800 x 400 x 380mm 1,016 x 475 x 380mm 1,143 x 475 x 380mm
31.5" × 15.7" × 15" 40" × 18.7" × 15" 45" × 18.7" × 15"
Sump Volume 114 L/30.2 gals 171 L/45.1 gals 192 L/50.8 gals
Glass Thickness 6mm (1/4") 8mm (5/16") 8mm (5/16")
Refugium Chamber
(Max Int. Dimensions)
250 x 342mm 250 x 413mm 300 x 413mm
9.8" × 13.5" 9.8" × 16.3" 11.8" × 16.3"
Refugium Chamber
(Min Int. Dimensions)
200 x 342mm 200 x 413mm 230 x 413mm
7.9" × 13.5" 7.9" × 16.3" 9.1" × 16.3"
Skimmer Chamber
(Int. DIM, w/o Refugium)
487 x 342mm 546 x 413mm 673 x 413mm
19.2" × 13.5" 21.5" × 16.3" 26.5" × 16.3"
Skimmer Chamber
(Int. DIM, with Min Refugium)
282 x 342mm 341 x 413mm 438 x 413mm
11.1" × 13.5" 13.4" × 16.3" 17.2" × 16.3"
Skimmer Chamber
(Int. DIM, with Max Refugium)
232 x 342mm 291 x 413mm 368 x 413mm
9.1" × 13.5" 11.5" × 16.3" 14.5" × 16.3"
Pump Chamber
(Int. Dimensions)
142 x 240mm 192 x 382mm 192 x 382mm
5.6" × 9.5" 7.6" × 15" 7.6" × 15"
ATO
Tank
ATO Dimensions 203 x 400 x 380mm 305 x 475 x 380mm
8" × 15.7" × 15" 12" × 18.7" × 15"
ATO Volume 28 L/7.3 gals 51 L/13.4 gals
Glass Thickness 6mm (1/4") 6mm (1/4")
Plumbing Main Drain DN25 (32mm/1-1/4") DN32 (40mm/1-1/2")
Emergency Overflow DN25 (32mm/1-1/4") DN32 (40mm/1-1/2")
Pump Return DN20 (25mm/1") DN25 (32mm/1-1/4")
Nozzle(s) 2 x DN15 (20mm/3/4") 2 x DN20 (25mm/1")
Manifold Kit Manifold 15 (Single outlet)
Filtration Filter Socks 1 x 180mm/7" MESH 2 x 180mm/7" MESH
Filter Sock Silencers 1 x 180mm/7" 2 x 180mm/7"
Interchangable with Roller Filter YES
Marine-
Shield
Cabinet
Cabinet Model ALP 4820 ALP 6025 ALP 7225
Cabinet Dimensions 1,200 x 500 x 900mm 1,536 x 643 x 927mm 1,836 x 643 x 927mm
47.2" × 19.7" × 35.4" 60.5" × 25.3" × 36.5" 72.3" × 25.3" × 36.5"
Sump Compartment
(Int. Dimensions)
1,041 x 420 x 813mm 1,367 x 543 x 785mm 1,667 x 543 x 785mm
41" × 16.5" × 32" 53.8" × 21.4" × 30.9" 65.6" × 21.4" × 30.9"
Electrical Compartment
(Int. Dimensions)
232 x 91 x 774mm 303 x 91 x 774mm 303 x 91 x 774mm
9.1" × 3.6" × 30.5" 11.9" × 3.6" × 30.5" 11.9" × 3.6" × 30.5"
Cabinet Framework Anti-corrosion Aluminum Alloy
Door & Side Panels 18mm Wood Particle Board, PVC Laminated
Bottom Panels 10mm PVC Board
Cabinet Color WHT-White, BLK-Black, ASP-Aspen WHT-White, BLK-Black

* All volumes are calculated from net tank dimension less the glass thickness. They may vary dependent on user configuration and system application.
** All specifications are subject to changes without prior notice.
