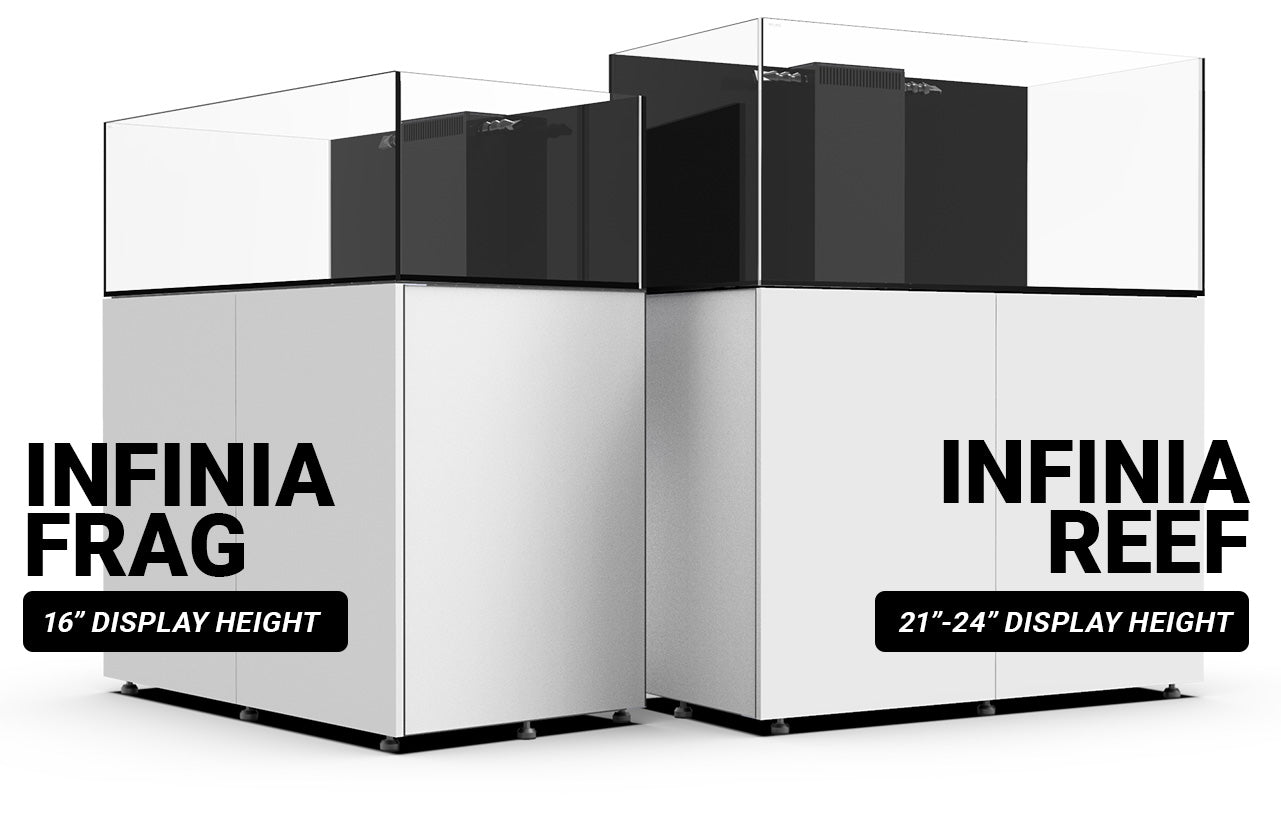

Waterbox Aquariums

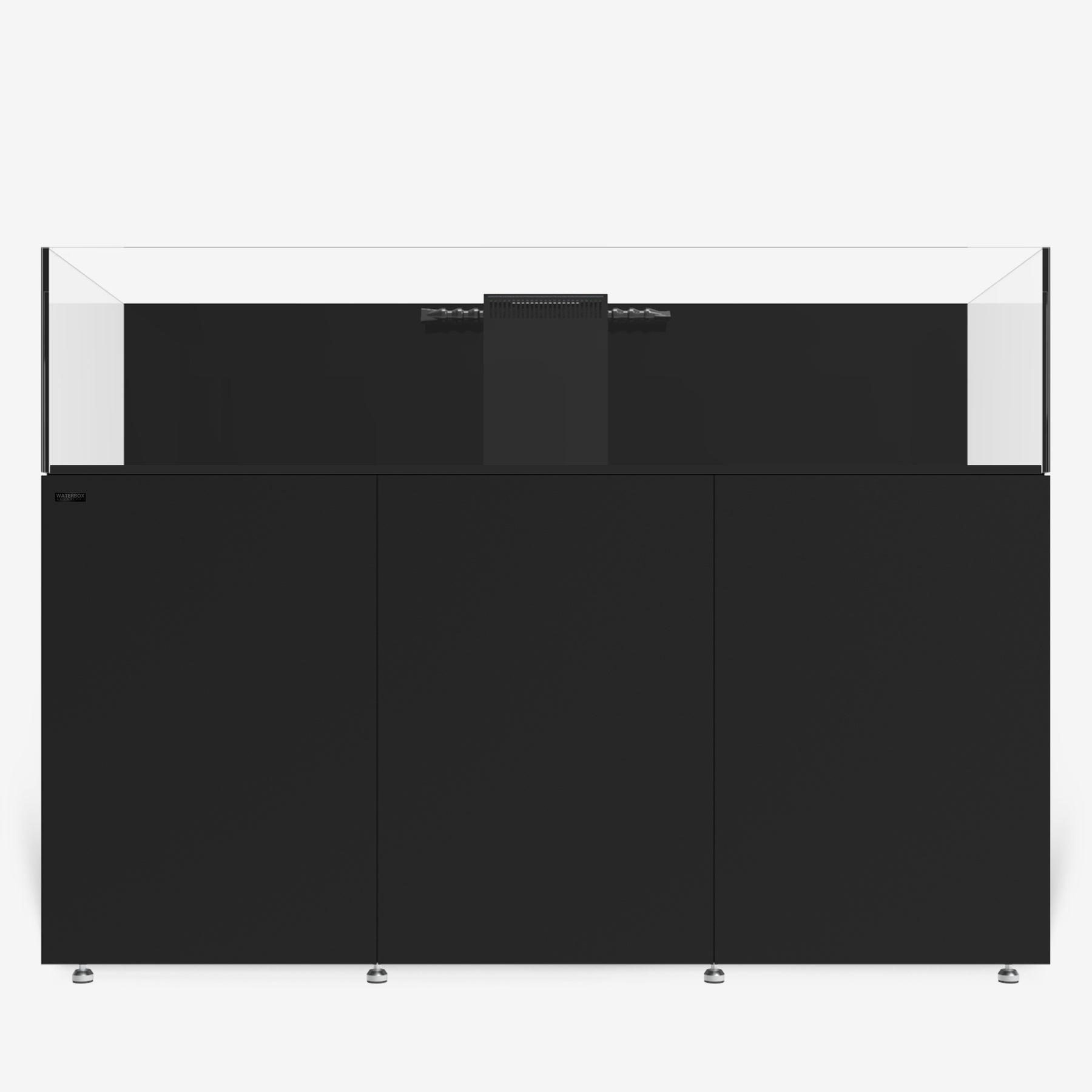

INFINIA Frag 175.6
⏳ Sale ends in {timer}
• Dimensions (LxWxH): 1,836 x 643 x 410mm (72.3" x 25.3" x 16.1")
• Height with Cabinet: 1,337 mm / 52.6"
• Display Volume: 446 L / 117.9 gal
• Total Volume: 690 L / 182.2 gals
• Glass Thickness: 12 mm (1/2")
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications
• Height with Cabinet: 1,337 mm / 52.6"
• Display Volume: 446 L / 117.9 gal
• Total Volume: 690 L / 182.2 gals
• Glass Thickness: 12 mm (1/2")
• Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications

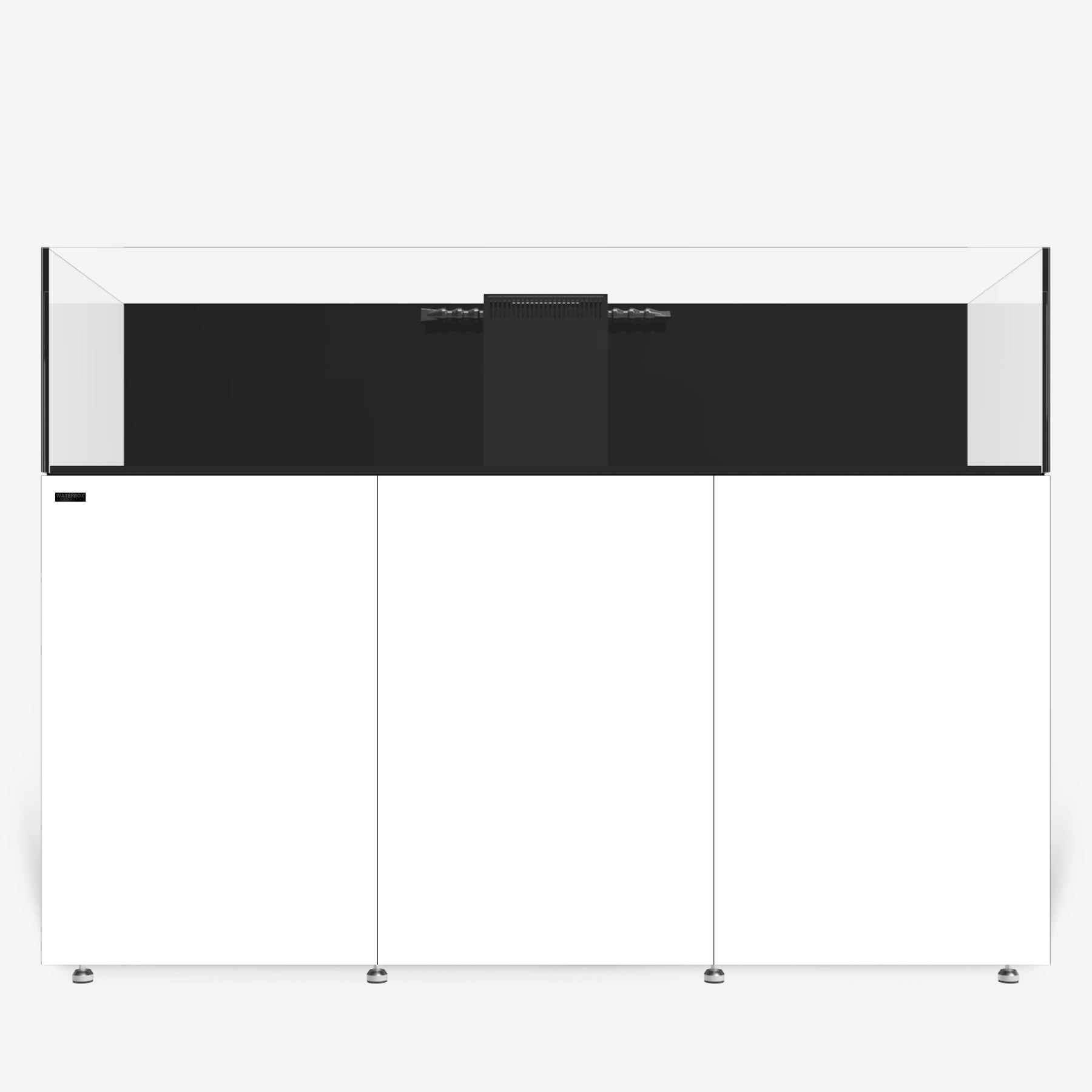

Color:White
The Display
Reach New Heights
Waterbox Aquariums® takes pride in hand-crafting stunning glass display aquariums that are renowned for superior cleanliness and quality.
Renowned for superior quality.
Ultra-Clear diamond beveled glass offers visual clarity up to 19mm (3/4”).
High-strength black silicone provides clean lines and longevity.
Central Overflow with water etched glass weir comb allows for optimal flow.

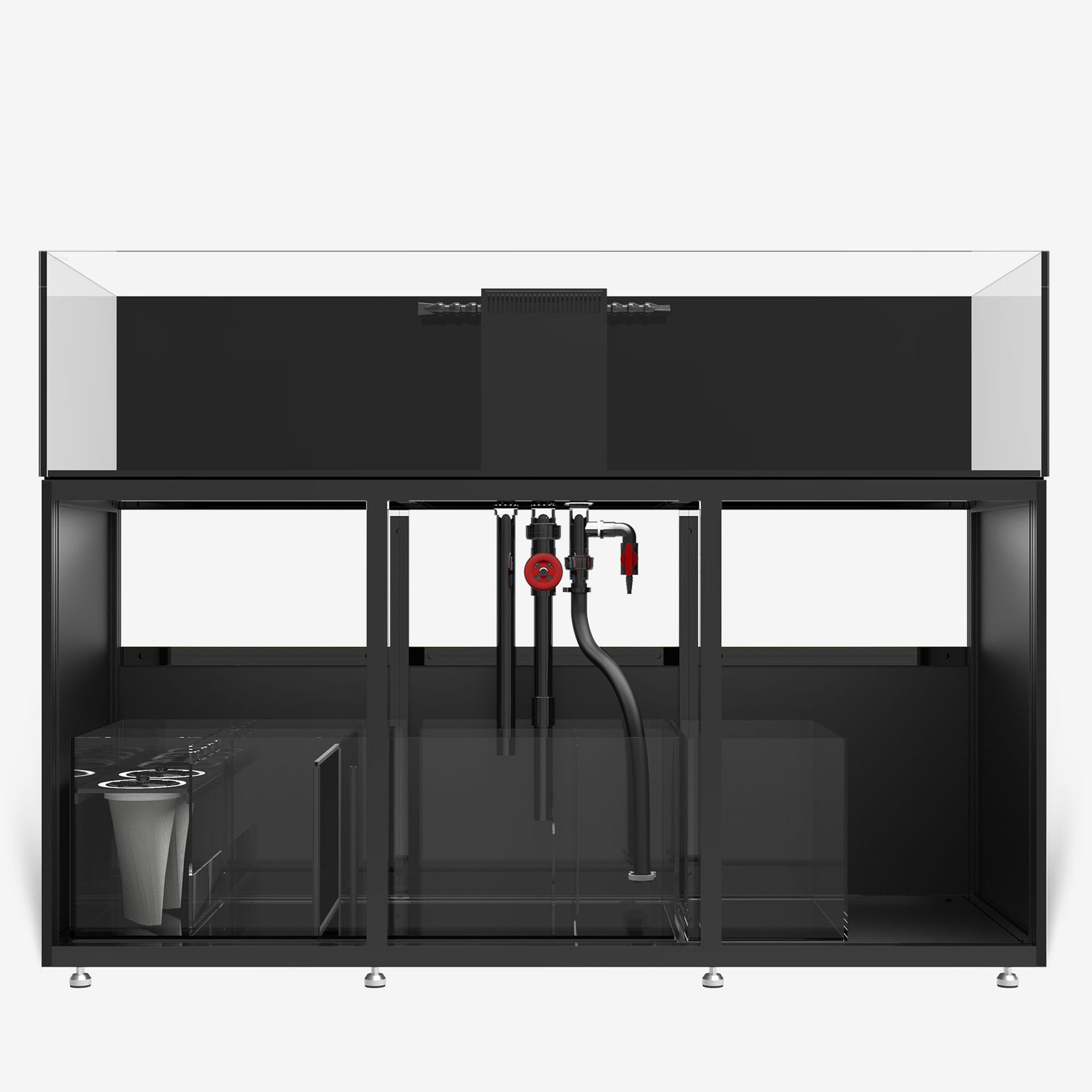

The Plumbing
Safe, Silent and Tested for Performance
Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.
Quick Connect Fittings assemble quick and easy with no glue required.
Easy Assembly With No Glue Required
Return Line includes dual adjustable nozzles for maximum turnover.
Precision Overflow Valve allows for precise adjustments ensuring quiet operation.
Manifold provides access for additional reactors and equipment.
Designed to prevent flooding.
Check Valve ensures back syphon does not overflow the sump.
Check valve only on INFINIA REEF models.
The Sump
Did you say filter roller?
The INFINIA® sump system features an integrated filter sock chamber which can easily adopt the most popular filter rollers.
Filter Sock Filtration featuring dual 7-inch filter socks to maximize filtration capacity.
Skimmer or Media Reactor Chamber with ample space for the industry's leading skimmers and reactors.
Easily adopt the most popular filter rollers.
Refugium maximizes your nutrient export.
Included RO Reservoir for ease of maintenance using an electronic top-off system.
Peace of mind
3 Year Waterbox Warranty
Waterbox Aquariums® warrants your product against defects in materials and workmanship for a period of 3 years, valid from the original date of purchase.
Sump Diagrams
The Cabinetry
Strength and Durability
Unveiling our new MarineShield® cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.
Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.
Financing
Reef Now. Pay Later.
Waterbox now offers two convenient ways to pay for your aquarium purchase over time.
INFINIA
Technical Specifications
INFINIA FRAG
| Product Model | INFINIA FRAG 125.4 |
INFINIA FRAG 155.5 |
INFINIA FRAG 175.6 |
|
|---|---|---|---|---|
| System | Height with Cabinet | 1,337mm/52.6" | 1,337mm/52.6" | 1,337mm/52.6" |
| Total Volume with ATO | 469 L/123.8 gals | 585 L/154.6 gals | 690 L/182.2 gals | |
| Total System Weight | 175 kg/386 lbs | 211 kg/465 lbs | 232 kg/511 lbs | |
| Display Tank |
Tank Dimensions | 1,223 x 643 x 410mm | 1,536 x 643 x 410mm | 1,836 x 643 x 410mm |
| 48.2" × 25.3" × 16.1" | 60.5" × 25.3" × 16.1" | 72.3" × 25.3" × 16.1" | ||
| Glass Thickness | 12mm (1/2") | 12mm (1/2") | 12mm (1/2") | |
| Aquarium Volume | 295 L/78 gals | 372 L/98.4 gals | 446 L/117.9 gals | |
| Aquarium Weight | 82 kg/181 lbs | 98 kg/216 lbs | 113 kg/249 lbs | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 864 x 475 x 380mm | 1,067 x 475 x 380mm | 1,143 x 475 x 380mm |
| 34" × 18.7" × 15" | 42" × 18.7" × 15" | 45" × 18.7" × 15" | ||
| Sump Volume | 140 L/37.1 gals | 162 L/42.8 gals | 192 L/50.8 gals | |
| Sump Weight | 40 kg/88 lbs | 45 kg/99 lbs | 48 kg/106 lbs | |
| Glass Thickness | 8mm (5/16") | |||
| Refugium Chamer (Max Int. Dimensions) |
180 x 400mm | 250 x 400mm | 300 x 400mm | |
| 7.1" × 15.8" | 9.8" × 15.8" | 11.8" × 15.8" | ||
| Refugium Chamer (Min Int. Dimensions) |
140 x 400mm | 200 x 400mm | 230 x 400mm | |
| 5.5" × 15.8" | 7.9" × 15.8" | 9.1" × 15.8" | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
416 x 400mm | 528 x 400mm | 676 x 400mm | |
| 16.4" × 15.8" | 20.8" × 15.8" | 26.6" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
271 x 400mm | 323 x 400mm | 441 x 400mm | |
| 10.7" × 15.8" | 12.7" × 15.8" | 17.4" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Max Refugium) |
231 x 400mm | 273 x 400mm | 371 x 400mm | |
| 9.1" × 15.8" | 10.7" × 15.8" | 14.6" × 15.8" | ||
| Pump Chamber (Int. Dimensions) |
135x 400mm | 150 x 400mm | 180 x 400mm | |
| 5.3" × 15.8" | 5.9" × 15.8" | 7.1" × 15.8" | ||
| ATO Tank |
ATO Dimensions | 203 x 475 x 380mm | 305 x 475 x 380mm | |
| 8" × 18.7" × 15" | 12" × 18.7" × 15" | |||
| ATO Volume | 33 L/8.7 gals | 51 L/13.4 gals | ||
| ATO Weight | 9 kg/20 lbs | 11 kg/24 lbs | 11 kg/24 lbs | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Plumbing | Main Drain | DN32 (ID: 32mm OD: 40mm) | ||
| Emergency Overflow | DN32 (ID: 32mm OD: 40mm) | |||
| Pump Return | DN25 (ID: 25mm OD: 32mm) | |||
| Return Hose | lD: 25mm OD: 31mm | |||
| Nozzle(s) (Thread Size) | 2 x M25 (25mm) | |||
| Manifold Kit | Manifold 15 (Single outlet) | |||
| Filtration | Filter Socks | 2 x 180mm/7" FELT | ||
| Filter Sock Silencers | 2 x 180mm/7" | |||
| Interchangable with Roller Filter | YES | |||
| Marine- Shield Cabinet |
Cabinet Model | MSII 4825 | MSII 6025 | MSII 7225 |
| Cabinet Dimensions | 1,223 x 643 x 927mm | 1,536 x 643 x 927mm | 1,836 x 643 x 927mm | |
| 48.2" × 25.3" × 36.5" | 60.5" × 25.3" × 36.5" | 72.3" × 25.3" × 36.5" | ||
| Sump Compartment (Int. Dimensions) |
1182 x 549 x 849mm | 1,495 x 541 x 849mm | 1,795 x 541 x 849mm | |
| 46.5" × 21.6" × 33.4" | 58.9" × 21.3" × 33.4" | 70.7" × 21.3" × 33.4" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door Panels | Double-sided 18mm PET laminated Wood Oriented Strand Board | |||
| Side Panels | Aluminum Composite | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 5mm PVC Board | |||
| Cabinet Weight | 44 kg/97 lbs | 57 kg/126 lbs | 60 kg/132 lbs | |
| Cabinet Color | WHT-White, BLK-Black | |||
INFINIA REEF
| Product Model | INFINIA REEF 150.4 |
INFINIA REEF 190.5 |
INFINIA REEF 230.6 |
|
|---|---|---|---|---|
| System | Height with Cabinet | 1,477mm/58.2" | 1,502mm/59.1" | 1,527mm/60.1" |
| Total Volume with ATO | 573 L/151.3 gals | 730 L/192.8 gals | 875 L/231.2 gals | |
| Total System Weight | 191 kg/421 lbs | 259 kg/571 lbs | 330 kg/728 lbs | |
| Display Tank |
Tank Dimensions | 1,223 x 643 x 550mm | 1,536 x 643 x 575mm | 1,836 x 643 x 600mm |
| 48.2" × 25.3" × 21.7" | 60.5" × 25.3" × 22.6" | 72.3" × 25.3" × 23.6" | ||
| Glass Thickness | 12mm (1/2") | 15mm (3/5″) | 19mm (3/4") | |
| Aquarium Volume | 399 L/105.5 gals | 517 L/136.6 gals | 632 L/167 gals | |
| Aquarium Weight | 98 kg/216 lbs | 146 kg/322 lbs | 211 kg/465 lbs | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 838 x 475 x 380mm | 965 x 475 x 380mm | 1,143 x 475 x 380mm |
| 33" × 18.7" × 15" | 38" × 18.7" × 15" | 45" × 18.7" × 15" | ||
| Sump Volume | 140 L/37.1 gals | 162 L/42.8 gals | 192 L/50.8 gals | |
| Sump Weight | 40 kg/88 lbs | 45 kg/99 lbs | 48 kg/106 lbs | |
| Glass Thickness | 8mm (5/16") | |||
| Refugium Chamer (Max Int. Dimensions) |
180 x 400mm | 250 x 400mm | 300 x 400mm | |
| 7.1" × 15.8" | 9.8" × 15.8" | 11.8" × 15.8" | ||
| Refugium Chamer (Min Int. Dimensions) |
140 x 400mm | 200 x 400mm | 230 x 400mm | |
| 5.5" × 15.8" | 7.9" × 15.8" | 9.1" × 15.8" | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
416 x 400mm | 528 x 400mm | 676 x 400mm | |
| 16.4" × 15.8" | 20.8" × 15.8" | 26.6" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
271 x 400mm | 323 x 400mm | 441 x 400mm | |
| 10.7" × 15.8" | 12.7" × 15.8" | 17.4" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Max Refugium) |
231 x 400mm | 273 x 400mm | 371 x 400mm | |
| 9.1" × 15.8" | 10.7" × 15.8" | 14.6" × 15.8" | ||
| Pump Chamber (Int. Dimensions) |
135x 400mm | 150 x 400mm | 180 x 400mm | |
| 5.3" × 15.8" | 5.9" × 15.8" | 7.1" × 15.8" | ||
| ATO Tank |
ATO Dimensions | 203 x 475 x 380mm | 305 x 475 x 380mm | |
| 8" × 18.7" × 15" | 12" × 18.7" × 15" | |||
| ATO Volume | 33 L/8.7 gals | 51 L/13.4 gals | ||
| ATO Weight | 9 kg/20 lbs | 11 kg/24 lbs | 11 kg/24 lbs | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Plumbing | Main Drain | DN32 (ID: 32mm OD: 40mm) | ||
| Emergency Overflow | DN32 (ID: 32mm OD: 40mm) | |||
| Pump Return | DN25 (ID: 25mm OD: 32mm) | |||
| Return Hose | lD: 25mm OD: 31mm | |||
| Nozzle(s) (Thread Size) | 2 x M25 (25mm) | |||
| Manifold Kit | Manifold 15 (Single outlet) | |||
| Filtration | Filter Socks | 2 x 180mm/7" FELT | ||
| Filter Sock Silencers | 2 x 180mm/7" | |||
| Interchangable with Roller Filter | YES | |||
| Marine- Shield Cabinet |
Cabinet Model | MSII 4825 | MSII 6025 | MSII 7225 |
| Cabinet Dimensions | 1,223 x 643 x 927mm | 1,536 x 643 x 927mm | 1,836 x 643 x 927mm | |
| 48.2" × 25.3" × 36.5" | 60.5" × 25.3" × 36.5" | 72.3" × 25.3" × 36.5" | ||
| Sump Compartment (Int. Dimensions) |
1182 x 549 x 849mm | 1,495 x 541 x 849mm | 1,795 x 541 x 849mm | |
| 46.5" × 21.6" × 33.4" | 58.9" × 21.3" × 33.4" | 70.7" × 21.3" × 33.4" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door Panels | Double-sided 18mm PET laminated Wood Oriented Strand Board | |||
| Side Panels | Aluminum Composite | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 5mm PVC Board | |||
| Cabinet Weight | 44 kg/97 lbs | 57 kg/126 lbs | 60 kg/132 lbs | |
| Cabinet Color | WHT-White, BLK-Black | |||
* All volumes are calculated from nett tank dimension less glass thickness at maximum water level.
** Water height and volume may vary dependent on user configuration and system application.
*** All specifications are subject to changes without prior notice.
