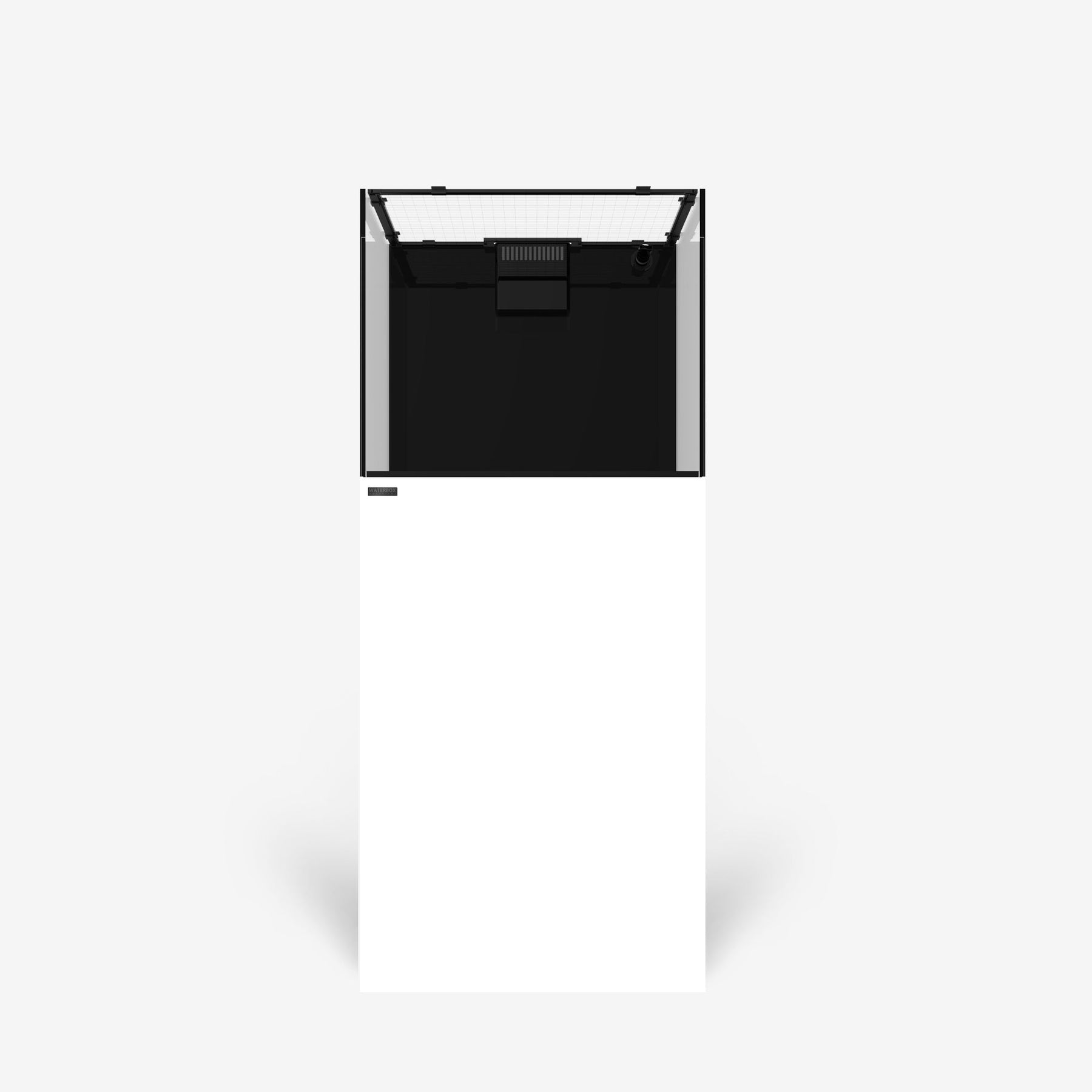

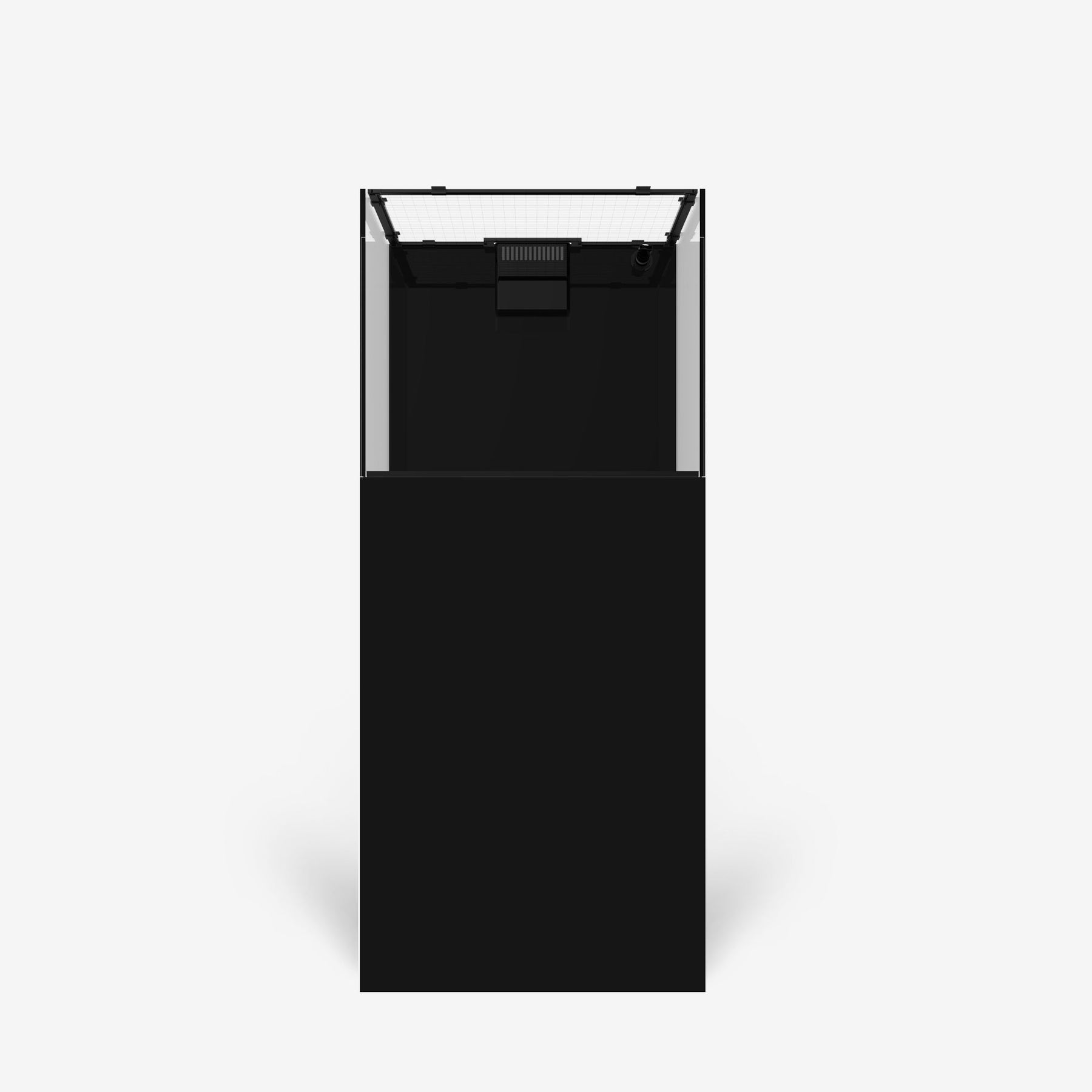

MARINE EX 60.2
Building on the MARINE X platform, the MARINE EX line incorporates a low-profile overflow system paired with professional-grade acrylic sumps. This enhancement provides a sleeker display cabinet, advanced filtration layout, and marine-grade cabinetry for superior corrosion resistance—perfect for serious reef keepers seeking both functionality and sophistication
THE DISPLAY
MARINE EX
The first Waterbox Aquarium® built with an external overflow system. Maximizing internal space and giving full creativity to aquascaping.
The Plumbing
Safe, Silent, and Tested for Performance
Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.
The Sump
All New Acrylic Sump
Professional grade acrylic sump system designed by our team of professionals to optimize your filtration and auto top off ability
Sump Diagrams
The Cabinetry
Strength and Durability
Unveiling our new marine-grade cabinetry system. Showcasing strength, durability, and corrosion resistance. With long lasting performance at its core, this series is engineered to stand the test of time.
Subheading
Reef Now. Pay Later.
Waterbox now offers two convenient ways to pay for your aquarium purchase over time.
Technical Specifications
| Product Model | MARINE EX 60.2 | MARINE EX 90.3 | MARINE EX 110.4 | |
|---|---|---|---|---|
| System | Height with Cabinet | 1,400mm/55.1" | 1,450mm/57.1" | 1,450mm/57.1" |
| Total Volume with RO | 207 L/54.7 gals | 337 L/89gals | 414 L/109.3 gals | |
| Total System Weight | - | - | - | |
| Display Tank |
Tank Dimensions | 600 x 500 x 500mm | 900 x 500 x 550mm | 1,200 x 500 x 550mm |
| 23.6"×19.7"×19.7" | 35.4"×19.7"×21.7" | 47.2"×19.7"×21.7" | ||
| Glass Thickness | 10mm (2/5") | 12mm (1/2") | 12mm (1/2") | |
| Aquarium Volume | 136 L/36 gals | 224 L/59.3 gals | 301 L/79.6 gals | |
| Aquarium Weight | 37.7 kg/83 lbs | 69.4 kg/153 lbs | 85.4 kg/188 lbs | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| Overflow Type | Acrylic External Overflow | |||
| In-cabinet Sump |
Dimensions | 510 x 410 x 380mm | 800 x 410 x 380mm | |
| 20.1" × 16.1" × 15" | 31.5" × 16.1 × 15" | |||
| Sump Volume | 71 L/18.7gals | 113 L/29.7 gals | ||
| Sump Weight | 9 kg/20 lbs | 12 kg/26 lbs | ||
| Acrylic Thickness | 5mm (3/16") | 5mm (3/16") | ||
| Skimmer Chamber (Internal Dimensions) |
265 x 245mm | 380 x 303mm | ||
| 10.4"×9.7" | 15"×11.9" | |||
| Skimmer Chamber (Cutout Dimensions) |
250 x 230mm | 367 x 287mm | ||
| 9.8"×9.1" | 14.4"×11.3" | |||
| Pump Chamber (Internal Dimensions) |
195 x 225mm | 225 x 225mm | ||
| 7.7"×8.9" | 8.9"×8.9" | |||
| Pump Chamber (Cutout Dimensions) |
162 x 211mm | 210 x 190mm | ||
| 6.4"×8.3" | 8.3"×7.5" | |||
| RO Reservoir (Cutout Dimensions) |
184 x 146mm | 212 x 146mm | ||
| 7.2"×5.7" | 8.3"×5.7" | |||
| RO Reservoir (Internal Dimensions) |
195 x 160mm | 225 x 160mm | ||
| 7.7"×6.3" | 8.9"×6.3" | |||
| RO Volume | 11.3 L/3 gals | 13.1 L/3.5 gals | ||
| Plumbing | Main Drain | DN20 (ID: 20mm OD: 25mm) | DN25 (ID: 25mm OD: 32mm) | |
| Emergency Overflow | DN20 (ID: 20mm OD: 25mm) | DN25 (ID: 25mm OD: 32mm) | ||
| Pump Return | DN20 (ID: 20mm OD: 25mm) | |||
| Nozzle(s) (Thread Size) | 2 x M20 (20mm) | |||
| Filtration | 225 Micron Fileter Socks | 1 x 105mm/4" FELT | 2 x 105mm/4" FELT | |
| Filter Sock Silencers | 1 x 105mm/4" | 2 x 105mm/4" | ||
| Cabinet | Cabinet Model | OSB 2420 | OSB 3620 | OSB 4820 |
| Cabinet Dimensions | 600 x 500 x 900mm | 900 x 500 x 900mm | 1,200 x 500 x 900mm | |
| 23.6" × 19.7" × 35.4" | 35.4" × 19.7" × 35.4" | 47.2" × 19.7" × 35.4" | ||
| Sump Compartment (Int. Dimensions) |
524 x 468 x 813mm | 824 x 448 x 813mm | 1,124 x 440 x 813mm | |
| 20.6" × 18.4" × 32" | 32.4" × 17.6" × 32" | 44.3" × 16.5" × 32" | ||
| Cabinet Framework | 18mm PVC Laminated Wood Oriented Strand Board | |||
| Door & Side Panels | ||||
| Bottom Panels | ||||
| Back Panels | ||||
| Cabinet Weight | - | - | - | |
| Cabinet Color | WHT-White, BLK-Black, ASP-Aspen | |||
