Waterbox Aquariums
REEF LX 330.7
⏳ Sale ends in {timer}
• Dimensions (LxWxH): 2,136 x 750 x 650mm (84.1" × 29.5" × 25.6")
• Height with Cabinet: 1,577mm/62.1"
• Display Volume: 943 L/249 gals
• Total Volume: 1,250 L/330.2 gals
• Glass Thickness: 19mm
• Includes: Aquarium, Pre-Assembled Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications
• Height with Cabinet: 1,577mm/62.1"
• Display Volume: 943 L/249 gals
• Total Volume: 1,250 L/330.2 gals
• Glass Thickness: 19mm
• Includes: Aquarium, Pre-Assembled Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications
Color:White
The Display
A Seismic Aquarium
The REEF LX reigns as the foremost premium reef aquarium in our lineup. Each system includes euro-braced Ultra Clear Low Iron Display, Fully Assembled Cabinetry, plumbing kit and sump system.
Renowned for superior quality.
Ultra-Clear diamond beveled glass offers visual clarity up to 19mm (3/4”).
CNC precision Eurobrace with mesh lid reinforces the 19mm Ultra Clear Glass Viewing Panels.
High-strength black silicone provides clean lines and longevity.
Central Overflow with water etched glass weir comb allows for optimal flow.

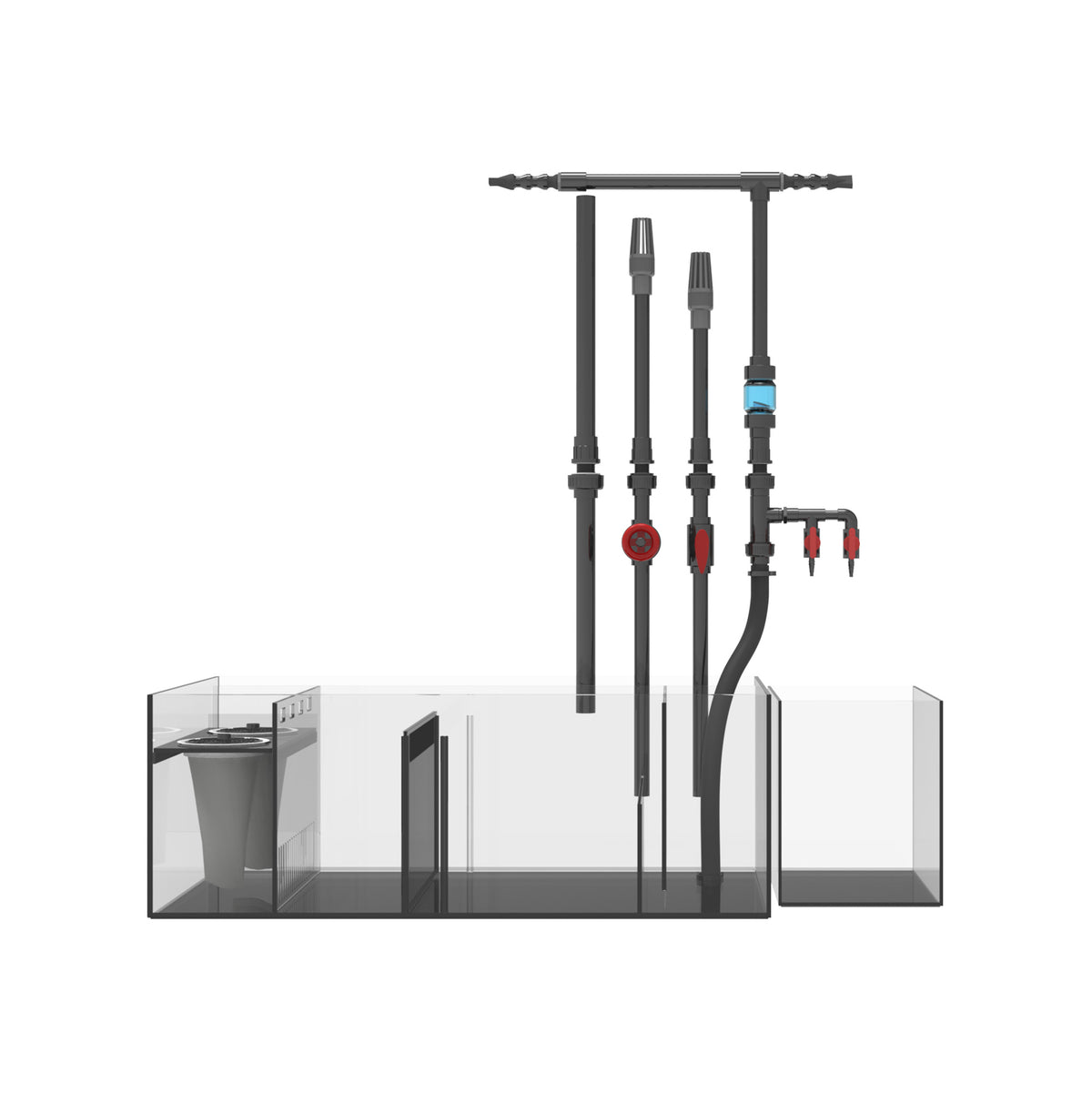

The Plumbing
Safe, Silent and Tested for Performance
Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.
Quick Connect Fittings assemble quick and easy with no gluing required.
Easy Assemly with no gluing required
Return Line includes dual adjustable nozzles for maximum turnover.
Precision Overflow Valve allows for precise adjustments ensuring quiet operation.
Manifold provides access for additional reactors and equipment.
Designed to prevent flooding.
Check Valve ensures back syphon does not overflow the sump.
The Sump
Did you say filter roller?
The REEF LX sump system features an integrated filter sock chamber which can easily adopt the most popular filter rollers.
Filter Sock Filtration featuring dual 7-inch filter socks to maximize filtration capacity.
Skimmer or Media Reactor Chamber with ample space for the industry's leading skimmers and reactors.
Easily adopt the most popular filter rollers.
Refugium maximizes your nutrient export.
Included RO Reservoir for ease of maintenance using an electronic top-off system.
Peace of mind
3 Year Waterbox Warranty
Waterbox Aquariums® warrants your product against defects in materials and workmanship for a period of 3 years, valid from the original date of purchase.
Sump Diagrams
The Cabinetry
Strength and Durability
The REEF LX cabinetry system arrives fully assembled, utilizing robust 30mm aluminum framing and sleek exterior paneling in white or black.
Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.
Constructed with 30mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
Electrical Compartment makes it easy to maintain controllers and electrical components organized.
Financing
Reef Now. Pay Later.
Waterbox now offers two convenient ways to pay for your aquarium purchase over time.
REEF LX
Save $349.95
Save $424.95
Save $424.95
Save $499.95
Save $499.95
Save $574.95
Technical Specifications
| Product Model | REEF LX 290.6 | REEF LX 330.7 | REEF LX 380.8 | |
|---|---|---|---|---|
| System | Height with Cabinet | 1,577mm/62.1" | 1,577mm/62.1" | 1,577mm/62.1" |
| Total Volume with RO/ATO | 1,091 L/288.3 gals | 1,250 L/330.2 gals | 1,450 L/383.1 gals | |
| Total System Weight | 356 kg/785 lbs | 477 kg/1052 lbs | 537 kg/1184 lbs | |
| Display Tank |
Tank Dimensions | 1,836 x 750 x 650mm | 2,136 x 750 x 650mm | 2,448 x 750 x 650mm |
| 72.3" × 29.5" × 25.6" | 84.1" × 29.5" × 25.6" | 96.4" × 29.5" × 25.6" | ||
| Ultraclear Front & Sides | 19mm (3/4") | 19mm (3/4") | 19mm (3/4") | |
| Bottom Glass | 19mm (3/4") | 19mm (3/4") | 19mm (3/4") | |
| Euro-bracing Thickness | 15mm (3/5″) | 15mm (3/5″) | 15mm (3/5″) | |
| Aquarium Volume | 808 L/213.4 gals | 943 L/249 gals | 1,083 L/286 gals | |
| Aquarium Weight | 266 kg/586 lbs | 301 kg/664 lbs | 336 kg/741 lbs | |
| Glass Material | Ultra-clear Low Iron glass (front, sides and euro-bracing) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 1,016 x 610 x 400mm | 1,118 x 610 x 400mm | 1,270 x 610 x 400mm |
| 40" × 24" × 15.7" | 44" × 24" × 15.7" | 50" × 24" × 15.7" | ||
| Sump Volume | 233 L/61.5 gals | 257 L/67.8 gals | 292 L/77.1 gals | |
| Sump Weight | 55 kg/121 lbs | 59 kg/130 lbs | 65 kg/143 lbs | |
| Glass Thickness | 8mm (5/16") | 8mm (5/16") | 8mm (5/16") | |
| Refugium Chamer (Ma x Int. Dimensions) |
250 x 518mm | 300 x 518mm | 350 x 518mm | |
| 9.8" × 20.4" | 11.8" × 20.4" | 13.8" × 20.4" | ||
| Refugium Chamer (Min Int. Dimensions) |
200 x 518mm | 230 x 518mm | 250 x 518mm | |
| 7.9" × 20.4" | 9.1" × 20.4" | 9.8" × 20.4" | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
547 x 518mm | 649 x 518mm | 801 x 518mm | |
| 21.5" × 20.4" | 25.6" × 20.4" | 31.5" × 20.4" | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
342 x 518mm | 414 x 518mm | 546 x 518mm | |
| 13.5" × 20.4" | 16.3" × 20.4" | 21.5" × 20.4" | ||
| Skimmer Chamber (Int. DIM, with Ma x Refugium) |
292 x 518mm | 344 x 518mm | 446 x 518mm | |
| 11.5" × 20.4" | 13.5" × 20.4" | 17.6" × 20.4" | ||
| Pump Chamber (Int. Dimensions) |
180 x 518mm | |||
| 7.1" × 20.4" | ||||
| ATO Tank | ATO Dimensions | 305 x 475 x 380mm | 350 x 610 x 380mm | |
| 12" × 18.7" × 15" | 13.8" × 24" × 15" | |||
| ATO Volume | 51 L/13.4 gals | 76 L/20 gals | ||
| ATO Weight | 11 kg/24 lbs | 11 kg/24 lbs | 15 kg/33 lbs | |
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | 6mm (1/4") | |
| Plumbing | Main Drain | 2 x DN25 (ID: 25mm OD: 32mm) | ||
| Emergency Overflow | DN32 (ID: 32mm OD: 40mm) | |||
| Pump Return | DN25 (ID: 25mm OD: 32mm) | |||
| Return Hose | lD: 32mm OD: 38mm | |||
| Nozzle(s) (Thread Size) | 2 x M25 (25mm) | |||
| Filtration | Filter Socks | 2 x 180mm/7" FELT | ||
| Filter Sock Silencers | 2 x 180mm/7" | |||
| Interchangable with Roller Filter | YES | |||
| SuperALU Cabinet |
Cabinet Model | ALU 7230 | ALU 8430 | ALU 9630 |
| Cabinet Dimensions | 1,836 x 750 x 927mm | 2,136 x 750 x 927mm | 2,448 x 750 x 927mm | |
| 72.3" × 29.5" × 36.5" | 84.1" × 29.5" × 36.5" | 96.4" × 29.5" × 36.5" | ||
| Sump Compartment (Int. Dimensions) |
1,641 x 672 x 785mm | 1,467 x 672 x 785mm | 1,700 x 672 x 785mm | |
| 64.6"×26.4"×30.9" | 57.6" × 26.4" × 32.8" | 66.9" × 26.4" × 32.8" | ||
| Electrical Compartment (Int. Dimensions) |
430 x 91 x 746mm | 430 x 91 x 746mm | 430 x 91 x 746mm | |
| 17" × 3.6" × 29.4" | 17" × 3.6" × 29.4" | 17" × 3.6" × 29.4" | ||
| Aluminum Framework | Heavy Duty Anti-corrosion Aluminum Alloy | |||
| Doors & Side Panels | Double-sided 18mm PET laminated Wood Oriented Strand Board | |||
| Bottom Panel | 10mm PVC Board | |||
| Back Panels | 6mm PVC Board | |||
| Cabinet Weight | 90 kg/198 lbs | 106 kg/234 lbs | 121 kg/267 lbs | |
| Cabinet Color | WHT-White, BLK-Black | |||
