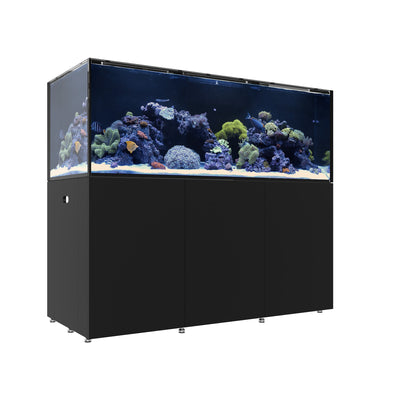

Waterbox Aquariums
REEF LX 290.6
• Dimensions (LxWxH): 1836 x 750 x 650mm (72.3" × 29.5" × 25.6")
• Height with Cabinet: 1,577mm/62.1"
• Display Volume: 808 L/213.4 gals
• Total Volume: 1,091 L/288.3 gals
• Glass Thickness: 19mm
• Includes: Aquarium, Pre-Assembled Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications
• Height with Cabinet: 1,577mm/62.1"
• Display Volume: 808 L/213.4 gals
• Total Volume: 1,091 L/288.3 gals
• Glass Thickness: 19mm
• Includes: Aquarium, Pre-Assembled Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
View Full Specifications

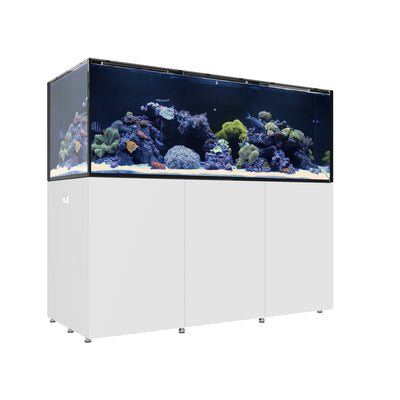

Color:White
Pay Over Time
The Display
A Seismic Aquarium
The REEF LX reigns as the foremost premium reef aquarium in our lineup. Each system includes euro-braced Ultra Clear Low Iron Display, Fully Assembled Cabinetry, plumbing kit and sump system.
Renowned for superior quality.
Ultra-Clear diamond beveled glass offers visual clarity up to 19mm (3/4”).

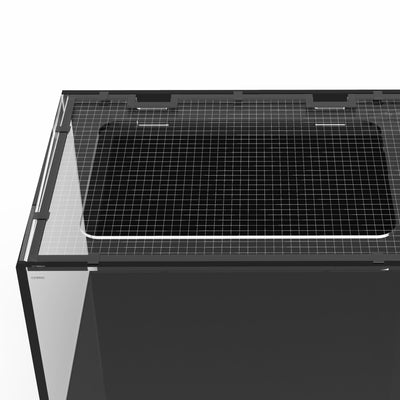

CNC precision Eurobrace with mesh lid reinforces the 19mm Ultra Clear Glass Viewing Panels.
High-strength black silicone provides clean lines and longevity.
Central Overflow with water etched glass weir comb allows for optimal flow.

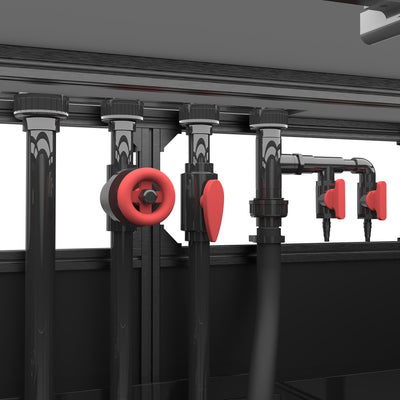

The Plumbing
Safe, Silent and Tested for Performance
Our plumbing systems offer the convenience of quick and easy assembly, while delivering high-performance results equivalent to those achieved through custom designs.
Quick Connect Fittings assemble quick and easy with no gluing required.
Easy Assemly with no gluing required
Return Line includes dual adjustable nozzles for maximum turnover.
Precision Overflow Valve allows for precise adjustments ensuring quiet operation.
Manifold provides access for additional reactors and equipment.
Designed to prevent flooding.
Check Valve ensures back syphon does not overflow the sump.

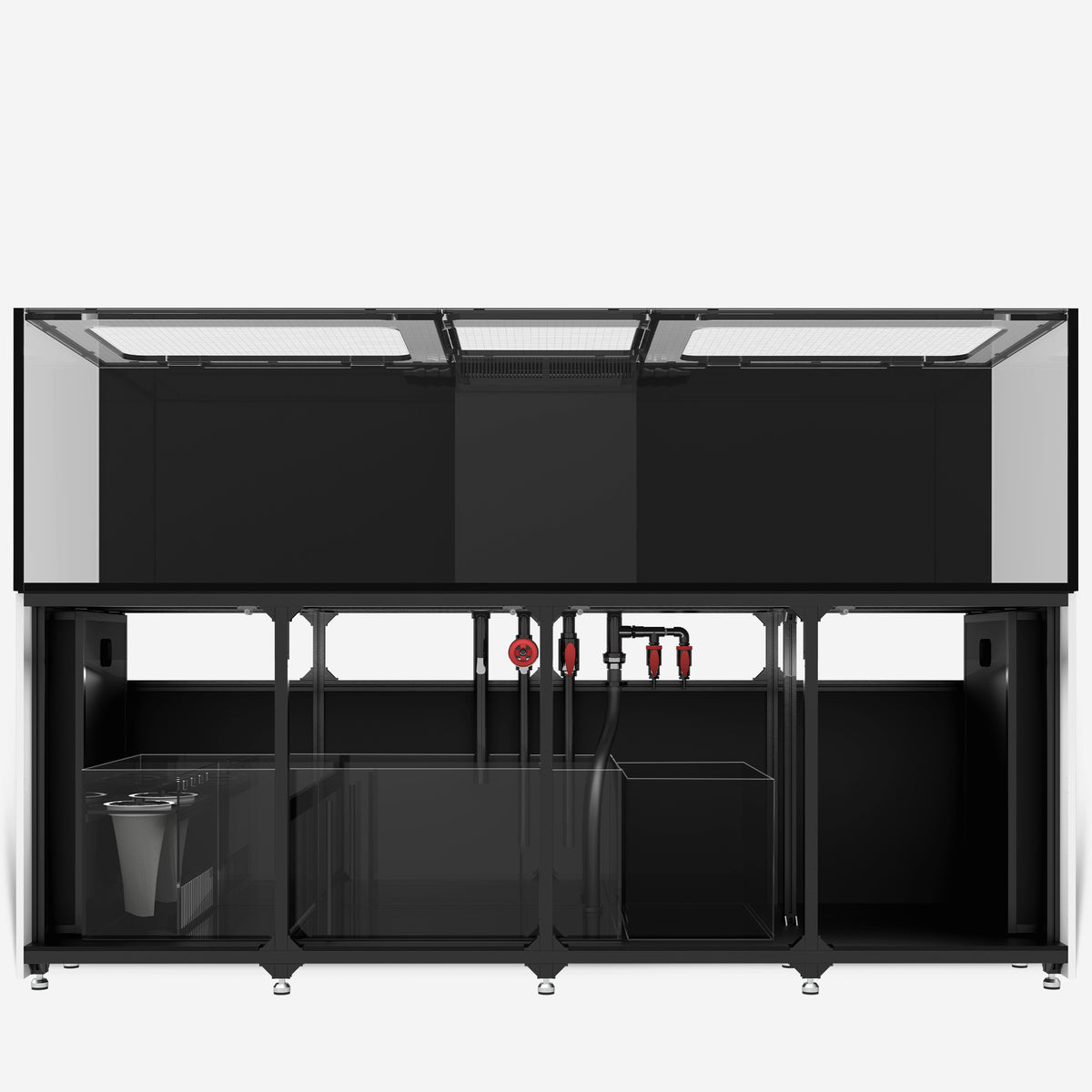

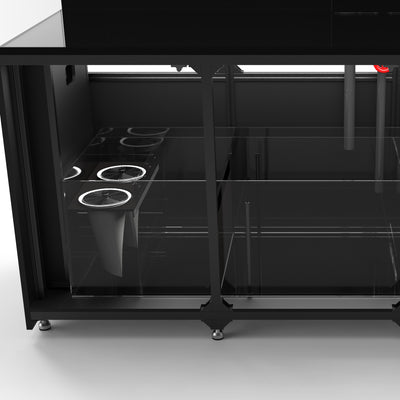

The Sump
Did you say filter roller?
The REEF LX sump system features an integrated filter sock chamber which can easily adopt the most popular filter rollers.
Filter Sock Filtration featuring dual 7-inch filter socks to maximize filtration capacity.
Skimmer or Media Reactor Chamber with ample space for the industry's leading skimmers and reactors.
Easily adopt the most popular filter rollers.
Refugium maximizes your nutrient export.
Included RO Reservoir for ease of maintenance using an electronic top-off system.
Sump Diagrams
The Cabinetry
Strength and Durability
The REEF LX cabinetry system arrives fully assembled, utilizing robust 30mm aluminum framing and sleek exterior paneling in white or black.
Constructed with aluminum framing to easily withstand the weight and humidity of your aquarium system.
High weight capacity adjustable leveling feet ensure your aquarium is level, front to back and side-to-side.
Constructed with 30mm aluminum framing to easily withstand the weight and humidity of your aquarium system.
Electrical Compartment makes it easy to maintain controllers and electrical components organized.
Financing
Reef Now. Pay Later.
Waterbox now offers two convenient ways to pay for your aquarium purchase over time.
REEF LX
Technical Specifications
| Product Model | REEF LX 290.6 | REEF LX 330.7 | REEF LX 380.8 | |
|---|---|---|---|---|
| System | Height with Cabinet | 1,577mm/62.1" | 1,577mm/62.1" | 1,577mm/62.1" |
| Total Volume | 1,091 L/288.3 gals | 1,250 L/330.2 gals | 1,450 L/383.1 gals | |
| Display |
Dimensions (Length x Width x Height) |
1,836 x 750 x 650mm | 2,136 x 750 x 650mm | 2,448 x 750 x 650mm |
| 72.3" × 29.5" × 25.6" | 84.1" × 29.5" × 25.6" | 96.4" × 29.5" × 25.6" | ||
| Ultraclear Front & Sides | 19mm (3/4") | 19mm (3/4") | 19mm (3/4") | |
| Bottom Glass | 19mm (3/4") | 19mm (3/4") | 19mm (3/4") | |
| Euro-bracing Thickness | 15mm (3/5″) | 15mm (3/5″) | 15mm (3/5″) | |
| Aquarium Volume | 808 L/213.4 gals | 943 L/249 gals | 1,083 L/286 gals | |
| Glass Material | Ultra-clear Low Iron glass (front, sides and euro-bracing) | |||
| Transmittance | 91% | |||
| Sump | Dimensions (Length x Width x Height) |
1,016 x 610 x 400mm | 1,118 x 610 x 400mm | 1,270 x 610 x 400mm |
| 40" × 24" × 15.7" | 44" × 24" × 15.7" | 50" × 24" × 15.7" | ||
| Sump Volume | 233 L/61.5 gals | 257 L/67.8 gals | 292 L/77.1 gals | |
| Glass Thickness | 8mm (5/16") | 8mm (5/16") | 8mm (5/16") | |
| Refugium Chamber (Max Dimensions) |
250 x 518mm | 300 x 518mm | 350 x 518mm | |
| 9.8" × 20.4" | 11.8" × 20.4" | 13.8" × 20.4" | ||
| Refugium Chamber (Min Dimensions) |
200 x 518mm | 230 x 518mm | 250 x 518mm | |
| 7.9" × 20.4" | 9.1" × 20.4" | 9.8" × 20.4" | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
547 x 518mm | 649 x 518mm | 801 x 518mm | |
| 21.5" × 20.4" | 25.6" × 20.4" | 31.5" × 20.4" | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
342 x 518mm | 414 x 518mm | 546 x 518mm | |
| 13.5" × 20.4" | 16.3" × 20.4" | 21.5" × 20.4" | ||
| Skimmer Chamber (Int. DIM, with Max Refugium) |
292 x 518mm | 344 x 518mm | 446 x 518mm | |
| 11.5" × 20.4" | 13.5" × 20.4" | 17.6" × 20.4" | ||
| Pump Chamber (Int. Dimensions) |
180 x 518mm | |||
| 7.1" × 20.4" | ||||
| ATO | ATO Dimensions (Length x Width x Height) |
305 x 475 x 380mm | 350 x 610 x 380mm | |
| 12" × 18.7" × 15" | 13.8" × 24" × 15" | |||
| ATO Volume | 51 L/13.4 gals | 76 L/20 gals | ||
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | 6mm (1/4") | |
| Plumbing | Main Drain | 2 x DN25 (32mm/1-1/4") | ||
| Emergency Overflow | DN32 (40mm/1-1/2") | |||
| Pump Return | DN25 (32mm/1-1/4") | |||
| Nozzle(s) | 2 x DN20 | |||
| Filtration | Filter Socks | 2 x 180mm/7" FELT | ||
| Filter Sock Silencers | 2 x 180mm/7" | |||
| Interchangable with Roller Filter | YES | |||
| Cabinet | Cabinet Model | ALU 7230 | ALU 8430 | ALU 9630 |
| Cabinet Dimensions | 1,836 x 750 x 927mm | 2,136 x 750 x 927mm | 2,448 x 750 x 927mm | |
| 72.3" × 29.5" × 36.5" | 84.1" × 29.5" × 36.5" | 96.4" × 29.5" × 36.5" | ||
| Sump Compartment (Int. Dimensions) |
1,637 x 670 x 785mm | 1,463 x 670 x 785mm | 1,700 x 670 x 785mm | |
| 64.5"×26.4"×30.9" | 57.6" × 25.7" × 32.8" | 66.9" × 25.7" × 32.8" | ||
| Electrical Compartment (Int. Dimensions) |
430 x 91 x 746mm | 430 x 91 x 746mm | 430 x 91 x 746mm | |
| 17" × 3.6" × 29.4" | 17" × 3.6" × 29.4" | 17" × 3.6" × 29.4" | ||
| Aluminum Framework | Heavy Duty Anti-corrosion Aluminum Alloy | |||
| Doors & Side Panels | Double-sided 16mm PET laminated solid plywood | |||
| Bottom Panel | 10mm PVC Board | |||
| 90 kg/198 lbs | 106 kg/234 lbs | 121 kg/267 lbs | ||
| Cabinet Color | WHT-White, BLK-Black | |||
